Model
|

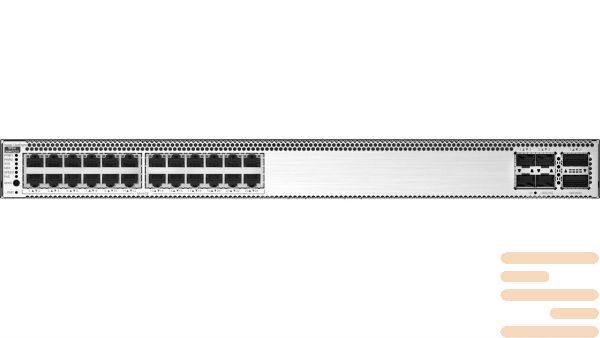

CloudEngine S5732-H24UM4Y2CZ-TV2
|
|
Fixed port
|
|
Multi-GE port
|
24
|
|
10GE SFP+ port
|
4
|
|
25GE SFP28 port
|
4
|
|
40GE QSFP+ port
|
2
|
|
100GE QSFP28 port
|
2
|
|
Extended slot
|
One extended slot, support 8 x 10GE SFP+ cards
|
|
Management port
|
|
ETH port
|
Supported
|
|
Console port (RJ45)
|
Supported
|
|
USB port
|
USB 2.0
|
|
CPU
|
|
Frequency
|
1.4 GHz
|
|
Cores
|
4
|
|
Storage
|
|
Memory (RAM)
|
4 GB
|
|
Flash memory
|
2 GB
|
|
Power supply system
|
|
Power supply type
|
• 600 W PoE AC (pluggable)
• 1000 W PoE AC (pluggable)
• 1000 W PoE DC (pluggable)
|
|
Rated voltage range
|
• AC input (600 W/1000 W PoE AC ): 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
• High-Voltage DC input: 240 V DC
• DC input (1000 W PoE DC): -48 VDC to -60 V DC
|
|
Maximum voltage range
|
• AC input(600 W/1000 W PoE AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-Voltage DC input: 190 V DC to 290 V DC
• DC input(1000 W PoE DC): -38.4 V DC to -72 V DC
|
|
Maximum power consumption(input)
|
• 241 W (without PD&Card)
• 2011 W (with PD, PD power consumption of 1687 W)
|
|
Power consumption in the case of 30% traffic load
|
161W
|
|
Power consumption in the case of 100% traffic load
|
172W
|
|
Minimum power consumption
|
112W
|
|
Heat dissipation system
|
|
Heat dissipation mode
|
Air-cooled heat dissipation and intelligent fan speed adjustment
|
|
Number of fan modules
|
2
|
|
Airflow
|
Air flows in from the front side and exhausts from the rear panel.
|
|
Maximum heat dissipation of the device (BTU/hour)
|
• POE： 6861.73
• non PoE： 822.32
|
|
Environment parameters
|
|
Long-term operating temperature
|
• 0-1800 m: 0°C to 45°C
• 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m.
|
|
Storage temperature
|
-40°C to +70°C
|
|
Relative humidity
|
5%–95% (non-condensing)
|
|
Operating altitude
|
5000 m
|
|
Noise under normal temperature (sound power)
|
• Dual-AC 600 W, 30% load: 49.2 dBA
• Dual-AC 1000 W, 30% load: 51.2 dBA
• Dual-DC 1000 W, 30% load: 51.2 dBA
|
|
Noise under high temperature (sound power)
|
• Dual-AC 600 W, 30% load: 61.4 dBA
• Dual-AC 1000 W, 30% load: 63.4 dBA
• Dual-DC 1000 W, 30% load: 63.4 dBA
|
|
Noise under normal temperature (sound pressure)
|
• Dual-AC 600 W, 30% load: 35.52 dBA
• Dual-AC 1000 W, 30% load: 37.52 dBA
• Dual-DC 1000 W, 30% load: 37.52 dBA
|
|
Surge protection specification (service port)
|
Common mode: ±7 kV
|
|
Surge protection specification (power port)
|
• AC power port: ±6 kV in differential mode, ±6 kV in common mode
• DC power port: ±2 kV in differential mode, ±4 kV in common mode
|
|
Reliability
|
|
MTBF (year)
|
51.4
|
|
MTTR (hour)
|
2
|
|
Availability
|
> 0.99999
|
|
Physical specifications
|
|
Dimensions (H x W x D, mm)
|
43.6 x 442 x 420
|
|
Chassis height
|
1 U
|
|
Chassis weight (including packaging)
|
8.88kg
|
