Huawei S5700 – a series of highly efficient, innovative switches that consist of a large number of devices and with a different number 1G ports. Switches are equipped with interfaces uplink 10G and massive software functionality (software).
Switches Huawei S5700 Designed for use in locations that require excellent, high throughput, low latency, and fault tolerance.
Depending on the functionality of the software, the switches of the series Huawei S5700 divided into several sub-series.
The switches are based on a high-performance platform of a unique design and a universal platform routing Huawei — Versatile Routing Platform (VRP).
The feature of this series of switches is: improved functionality 3-level, simplified operation and maintenance tools and flexible ways to organize an Internet network.

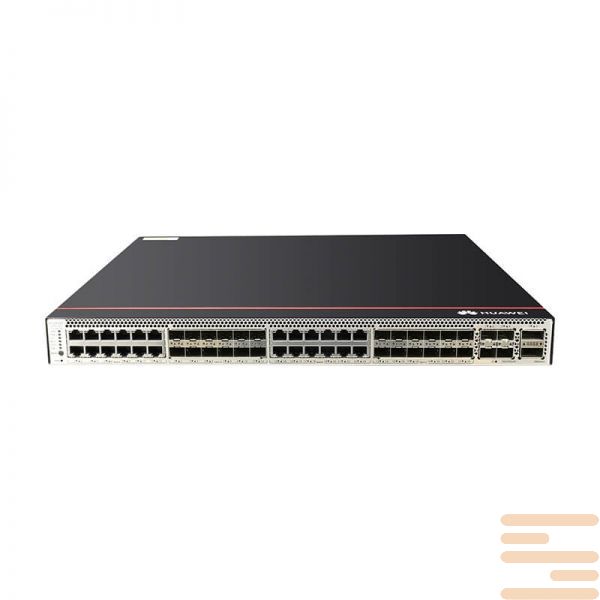

Technical specifications switch Huawei CloudEngine S5732-H48XUM2CC:
|
Product Model
|
S5732-H48XUM2CC
|
|
Description
|
24 x 10GE SFP+, 24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 1/10/25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE QSFP28 ports
One extended slot
PoE++
1+1 power backup
Forwarding performance: 490 Mpps
Switching capacity : 1.76 Tbps/2.4 Tbps
|
|
MAC address table
|
IEEE 802.1d standards compliance
128K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
|
|
VLAN
|
4094 VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
|
|
Wireless service
|
AP access control, AP domain management, and AP configuration template management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, tag/terminal location, and spectrum analysis
|
|
IP routing
|
Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
|
|
Dimensions (H x W x D)
|
43.6 mm x 442 mm x 420 mm
|
|
Chassis height
|
1U
|
|
Chassis weight
|
8.2kg
|
|
Power supply type
|
1000 W PoE AC (pluggable)
|
|
Rated voltage range
|
AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
|
