Huawei S5700 – a series of highly efficient, innovative switches that consist of a large number of devices and with a different number 1G ports. Switches are equipped with interfaces uplink 10G and massive software functionality (software).
Switches Huawei S5700 Designed for use in locations that require excellent, high throughput, low latency, and fault tolerance.
Depending on the functionality of the software, the switches of the series Huawei S5700 divided into several sub-series.
The switches are based on a high-performance platform of a unique design and a universal platform routing Huawei — Versatile Routing Platform (VRP).
The feature of this series of switches is: improved functionality 3-level, simplified operation and maintenance tools and flexible ways to organize an Internet network.

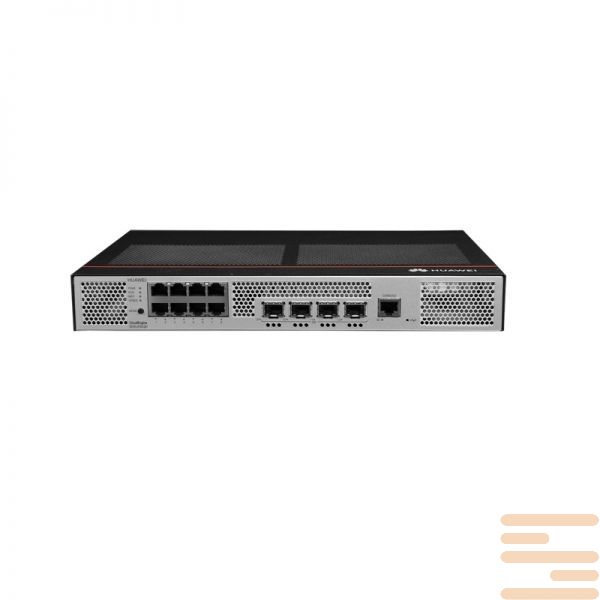

Technical specifications switch Huawei CloudEngine S5735-L8P4S-QA1:
|
Model
|
CloudEngine S5735-L8P4S-QA1
|
|
Fixed port
|
8 x 10/100/1000Base-T ports, 4 x GE SFP ports
|
|
Dimensions (H x W x D)
|
43.6 mm x 320 mm x 210 mm
|
|
Chassis height
|
1 U
|
|
Chassis weight (including packaging)
|
4.06 kg
|
|
Power supply type
|
AC adapter
|
|
Rated voltage range
|
100 V AC to 240 V AC, 50/60 Hz
|
|
Maximum voltage range
|
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
|
|
Maximum power consumption
|
● 28 W (without PD)
● 159 W (with PD, PD power consumption of 114 W)
|
|
Long-term operating temperature
|
● 0-1800 m altitude: -5°C to +45°C
● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
|
|
Short-term operating temperature
|
NA
|
|
Storage temperature
|
-40°C to +70°C
|
|
Relative humidity
|
5% to 95% (non condensing)
|
|
Surge protection specification (service port)
|
±10 kV in common mode
|
|
Surge protection specification (power port)
|
● Differential mode: ± 6 kV
● Common mode: ± 6 kV
|
|
Heat dissipation
|
Natural heat dissipation
|
