Huawei S5700 – a series of highly efficient, innovative switches that consist of a large number of devices and with a different number 1G ports. Switches are equipped with interfaces uplink 10G and massive software functionality (software).
Switches Huawei S5700 Designed for use in locations that require excellent, high throughput, low latency, and fault tolerance.
Depending on the functionality of the software, the switches of the series Huawei S5700 divided into several sub-series.
The switches are based on a high-performance platform of a unique design and a universal platform routing Huawei — Versatile Routing Platform (VRP).
The feature of this series of switches is: improved functionality 3-level, simplified operation and maintenance tools and flexible ways to organize an Internet network.

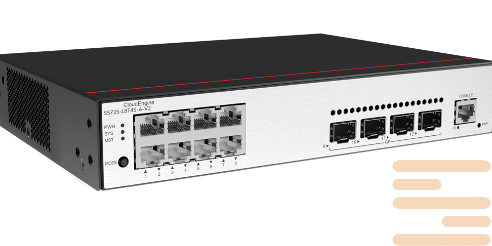

Technical specifications switch Huawei CloudEngine S5735-L8T4S-A-V2:
|
Model
|
CloudEngine S5735-L8T4S-A-V2
|
|
Fixed port
|
8 x 10/100/1000BASE-T ports, 4 x GE SFP ports
|
|
Dimensions (H x W x D)
|
43.6 mm x 250 mm x 180 mm
|
|
Chassis height
|
1 U
|
|
Chassis weight (including packaging)
|
3.58 kg
|
|
Power supply type
|
Built-in AC power
|
|
Rated input voltage
|
100 V AC to 240 V AC, 50/60 Hz
|
|
Input voltage range
|
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
|
|
Maximum power consumption
|
19.05 W
|
|
Noise
|
• Under normal temperature (sound power): 44.5dB (A)
• Under high temperature (sound power): 53dB (A)
• Under normal temperature (sound pressure): 32.5dB (A)
|
|
Long-term operating temperature
|
• 0-1800 m altitude: -5°C to +50°C
• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
|
|
Storage temperature
|
-40°C to +70°C
|
|
Relative humidity
|
5% to 95% (non condensing)
|
|
Surge protection specification (service port)
|
±7 kV in common mode
|
|
Surge protection specification (power port)
|
• Differential mode: ± 6 kV
• Common mode: ± 6 kV
|
|
Heat dissipation
|
Air-cooled heat dissipation and intelligent speed adjustment
|
|
Physical security
|
One Kensington lock slot, can be used to lock the device to mounting bracket
|
