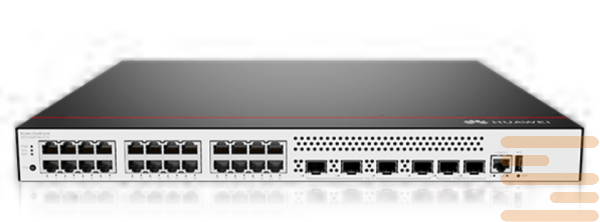

Switch Huawei CloudEngine S5735-S24T4XE-C-V2
CloudEngine S5735-S24T4XE-C-V2 24 × 10/100/1000Base-T ports, 4 × 10 GE SFP+ uplink ports, 2 × 12 GE stack ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5735-S24T4XE-C-V2:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5735-S24T4XE-C-V2 |
| Fixed Ports | 24 × 10/100/1000Base-T ports, 4 × 10 GE SFP+ uplink ports, 2 × 12 GE stack ports |
| Form Factor | 1U rack-mounted chassis; metal construction |
| Switching Capacity | 176 Gbps device / 520 Gbps system-wide |
| Forwarding Performance | 132 Mpps |
| Power Supply | Supports one or two hot-swappable power modules with 1+1 redundancy |
| Fan & Cooling System | One built-in fan; fan stops at normal temperature, auto-adjusts at high temp; airflow enters from front/sides, exits rear |
| Typical Power Consumption | 26.20 W |
| Static Power Consumption | 23.2 W |
| Maximum Power Consumption | – 33.10 W with two 80 W AC modules– 45.75 W with two 180 W AC modules– 85.20 W with two 1200 W DC modules |
| Typical Heat Dissipation | 89.40 BTU/h |
| Maximum Heat Dissipation | – 112.94 BTU/h (with 80 W modules)– 156.10 BTU/h (with 180 W modules)– 290.71 BTU/h (with 1200 W modules) |
| Dimensions (W × D) | 43.6 mm (H) × 442.0 mm (W) × 420.0 mm (D); max depth 446.0 mm including protrusions |
| Weight (without packaging) | 4.34 kg |
| Weight (with packaging) | 7.48 kg |
| Reliability (MTBF) | ~169 years; availability > 0.99999 |
| Noise Levels | Sound power ~47 dB(A); sound pressure ~35 dB(A) (fans operate at high temp only) |
| Fan Slots / Power Slots | 1 fan module; 2 power slots (redundant); no card expansion slot |
| Operating Temperature Range | –5 °C to +50 °C (up to 1800 m altitude) |
| PoE Support | Not supported |
| Use Cases | Ideal for access/aggregation layers in campuses and access layer of data centers |
| Core Features | Enhanced Layer-3 protocols (static, OSPF, BGP, VRRP, etc.), flexible Ethernet networking, IPv6 supported, easy O&M |
| condition | new |
|---|
