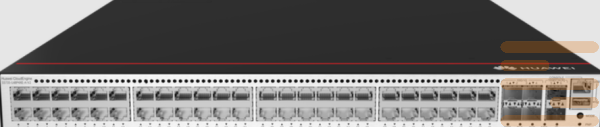

Switch Huawei CloudEngine S5735-S48P4XEZ-V2
CloudEngine S5735-S48P4XEZ-V2 48 × 10/100/1000BASE-T ports 4 × 10GE SFP+ ports 2 × 12GE stack ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5735-S48P4XEZ-V2:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5735-S48P4XEZ-V2 |
| Form Factor | 1U Rack-mounted |
| Ports | 48 × 10/100/1000BASE-T ports4 × 10GE SFP+ ports2 × 12GE stack ports |
| Expansion Slots | 1 (for additional modules) |
| Switching Capacity | 224 Gbps / 520 Gbps |
| Forwarding Performance | 168 Mpps |
| Power Supply | 3 × Pluggable power modules (1000 W PoE or 600 W PoE)AC or DC input supported |
| Power Consumption | Typical: 54.5 W |
| PoE Support | Yes, with PoE+ (802.3at) |
| Redundancy | N+1 power supply redundancy |
| MAC Address Management | Static, dynamic, blackhole entries, packet filtering |
| VLAN Support | Up to 4094 VLANs, Voice VLAN, MUX VLAN |
| Routing Protocols | Static, RIP v1/v2, RIPng, OSPF, BGP, VRRP |
| Management Ports | Console (RJ45), Ethernet Management (RJ45), USB |
| Memory | 2 GB RAM, 1 GB Flash |
| Dimensions (HxWxD) | 43.6 × 442.0 × 420.0 mm |
| Weight | Approximately 4.5 kg |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| condition | new |
|---|
