Switch Huawei CloudEngine S5735-S4T2X-IA150G1

SKU
S5735-S4T2X-IA150G1-1

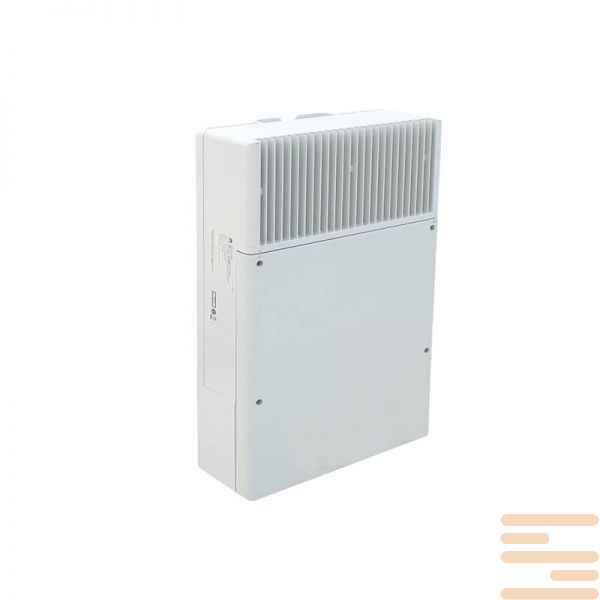

main product photo
€1,860.00
EAN: 18786
Stock: available on order
Lead time: 10-14 days
GPL price:

1860 $

4*10/100/1000BASE-T ports, 2*10GE SFP+ ports, AC power supply

Category: Huawei Switch

Contacts
+36 20 807 9600
[email protected]

90 Days Return
If goods have problems

Secure Payment
100% secure payment

Despite extreme conditions, a series of industrial switches Huawei CloudEngine S5735I-H-V2 continues to operate smoothly, ensuring stable and reliable network operation. High immunity to voltage fluctuations and a wide operating temperature range make them ideal for use in any environment. Even in harsh environments where dust, humidity and extreme temperatures can create problems for electronic equipment, these switches provide stable and reliable operation, which makes them indispensable for modern industrial networks.

With their flexibility and advanced capabilities, these switches can be used in a variety of industries and applications. They are ideal for automated manufacturing lines where a reliable network is needed to ensure uninterrupted operation of equipment. In addition, they can be used in city security systems where communication reliability and resistance to external influences are important. They also find their application in energy networks, where connection stability and uninterrupted operation of equipment are important.

Even in extreme environments such as deep mines, where the most challenging communication conditions are created, these switches provide reliable and uninterrupted operation, allowing you to communicate with the outside world and coordinate work in the mine. Thus, a series of industrial switches Huawei CloudEngine S5735I-H-V2 continues to prove its reliability and efficiency in the most difficult operating conditions.

Technical specifications of the switch Huawei CloudEngine S5735-S4T2X-IA150G1:



Model

CloudEngine S5735-S4T2X-IA150G1

Fixed port

4 x 10/100/1000Base-T ports and 2 x 10G SFP+ ports

Management port

Ethernet management port ,Console port (RJ45)

PoE

Not supported

Dimensions (H x W x D)

550 mm x 300 mm x 135 mm

Net weight

9.2kg

Rated voltage range

220 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

176 V AC to 264 V AC, 45 Hz to 66 Hz

Maximum power consumption (100% throughput)

29 W

Typical power consumption (30% of traffic load, without PoE power output)

28 W

Power output

• Maximum total output power of 12 V DC + 24 V AC: 144 W

• 12 V DC (five outputs): 72 W in total, with a maximum of 72 W for each output

• 24 V AC (two outputs): 72 W in total, with a maximum of 72 W for each output

• 220 V AC (Optional)

Fiber splice tray

Built-in(Optional)

Protection rating

IP55

Operating temperature

-40℃ to +75℃

NOTE

–25ºC to +75ºC : sunshade needed; 400 LFM air velocity (minimum); GPON optical modules not supported

–25ºC to +70ºC : sunshade needed; 200 LFM air velocity (minimum); GPON optical modules supported

–30ºC to +60ºC : sunshade needed; 40 LFM air velocity (minimum); GPON optical modules supported

–35ºC to +55ºC : sunshade needed; no requirement on the air velocity; GPON optical modules supported

–35ºC to +45ºC : 1120 W/m2 solar radiation (maximum); no requirement on the air velocity

–40ºC to –35ºC : At least four Ethernet electrical ports must be working. When the altitude is 1800-4000 m , the highest operating temperature reduces by 1°C every time the altitude increases by 220 m.

Power supply surge protection

Surge current:

• AC input: 20 kA

Surge:

• AC input: ±6 kV in differential mode; ±6 kV in common mode

• 12 V DC output: ±2 kV in differential mode; ±4 kV in common mode

• 24 V AC output: ±2 kV in differential mode; ±6 kV in common mode

Service port surge protection

±1.5 kV in differential mode, ±6 kV in common mode

Salt spray protection

Supported, allowing the switch to be installed in areas more than 500 meters away from the sea

Operating altitude

0-4000 m

Heat dissipation

Natural heat dissipation

Installation mode

Wall-mounted or pole-mounted
