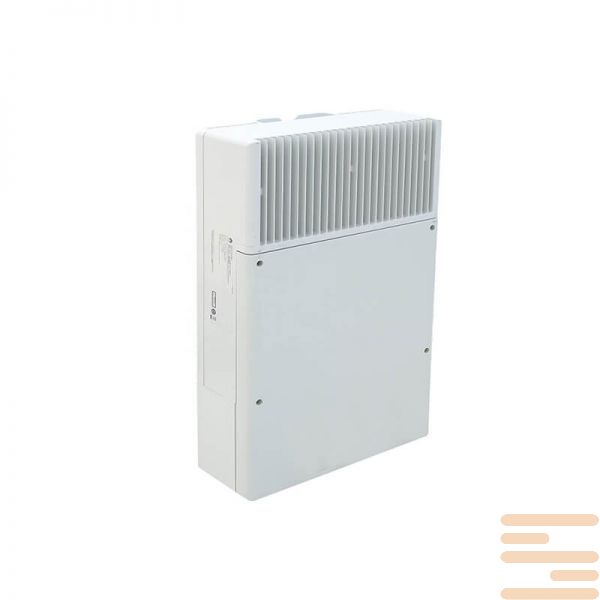

Switch Huawei CloudEngine S5735-S8P2X-IA200G1
2100 $
Function Module, S5735-S8P2X-IA200G1, 220Vac Single-Phase Input, 160W Max Combined Output Power (54.5Vdc/12Vdc/24Vac), Natural Heat Dissipation.
Despite extreme conditions, a series of industrial switches Huawei CloudEngine S5735I-H-V2 continues to operate smoothly, ensuring stable and reliable network operation. High immunity to voltage fluctuations and a wide operating temperature range make them ideal for use in any environment. Even in harsh environments where dust, humidity and extreme temperatures can create problems for electronic equipment, these switches provide stable and reliable operation, which makes them indispensable for modern industrial networks.
With their flexibility and advanced capabilities, these switches can be used in a variety of industries and applications. They are ideal for automated manufacturing lines where a reliable network is needed to ensure uninterrupted operation of equipment. In addition, they can be used in city security systems where communication reliability and resistance to external influences are important. They also find their application in energy networks, where connection stability and uninterrupted operation of equipment are important.
Even in extreme environments such as deep mines, where the most challenging communication conditions are created, these switches provide reliable and uninterrupted operation, allowing you to communicate with the outside world and coordinate work in the mine. Thus, a series of industrial switches Huawei CloudEngine S5735I-H-V2 continues to prove its reliability and efficiency in the most difficult operating conditions.
Technical specifications of the switch Huawei CloudEngine S5735-S8P2X-IA200G1:
|
Model |
CloudEngine S5735-S8P2X-IA200G1 |
|
Fixed port |
8 x 10/100/1000Base-T ports and 2 x 10G SFP+ ports |
|
Management port |
Ethernet management port, console port (RJ45), and USB 2.0 port |
|
PoE |
• 8 PoE+ ports, each providing up to 30 W power • 802.3af/802.3at standards compliance • Maximum total PoE output power: 160 W |
|
Dimensions (H x W x D) |
550 mm x 300 mm x 135 mm |
|
Net weight |
9.2kg |
|
Rated voltage range |
220 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
176 V AC to 264 V AC, 45 Hz to 66 Hz |
|
Maximum power consumption (100% throughput) |
• No power output: 34 W • 100% power output: 209 W (system power consumption: 49 W; power output: 160 W) |
|
Typical power consumption (30% of traffic load, without PoE power output) |
31 W |
|
Power output |
• Maximum total output power of 12 V DC + 24 V AC + PoE: 160 W • 12 V DC (five outputs): 72 W in total, with a maximum of 72 W for each output • 24 V AC (two outputs): 72 W in total, with a maximum of 72 W for each output • Eight PoE ports provide a maximum of 160 W power • 220 V AC (Optional) |
|
Fiber splice tray |
Built-in(Optional) |
|
Protection rating |
IP55 |
|
Operating temperature |
-40℃ to +75℃ NOTE –25ºC to +75ºC : sunshade needed; 400 LFM air velocity (minimum); GPON optical modules not supported –25ºC to +70ºC : sunshade needed; 200 LFM air velocity (minimum); GPON optical modules supported –30ºC to +60ºC : sunshade needed; 40 LFM air velocity (minimum); GPON optical modules supported –35ºC to +55ºC : sunshade needed; no requirement on the air velocity; GPON optical modules supported –35ºC to +45ºC : 1120 W/m2 solar radiation (maximum); no requirement on the air velocity –40ºC to –35ºC : At least four Ethernet electrical ports must be working. When the altitude is 1800-4000 m , the highest operating temperature reduces by 1°C every time the altitude increases by 220 m. |
|
Power supply surge protection |
Surge current: • AC input: 20 kA Surge: • AC input: ±6 kV in differential mode; ±6 kV in common mode • 12 V DC output: ±2 kV in differential mode; ±4 kV in common mode • 24 V AC output: ±2 kV in differential mode; ±6 kV in common mode |
|
Service port surge protection |
±1.5 kV in differential mode, ±6 kV in common mode |
|
Salt spray protection |
Supported, allowing the switch to be installed in areas more than 500 meters away from the sea |
|
Operating altitude |
0-4000 m |
|
Heat dissipation |
Natural heat dissipation |
|
Installation mode |
Wall-mounted or pole-mounted |
| condition | new |
|---|
