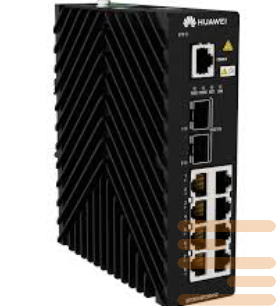

Switch Huawei CloudEngine S5735I-H8U2XN-V2
Huawei CloudEngine S5735I-H8U2XN-V2 Industrial switch with PoE++, built for DIN-rail mounting, fanless, with dual 56-57 V DC power input
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5735I-H8U2XN-V2:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine S5735I-H8U2XN-V2 |
| Description | Industrial switch with PoE++, built for DIN-rail mounting, fanless, with dual 56-57 V DC power input |
| Switching Capacity | 56 Gbps |
| Forwarding Performance | 42 Mpps |
| Fixed Ports | 8 × 10/100/1000Base-T PoE++ downlink ports; 2 × 10GE SFP+ uplink ports; 1 DI/DO port (digital input/output) |
| Power Supply System | External DC power; dual-redundant DC1/DC2 inputs; DC supply ~54-57 V for PoE/PoE+/PoE++; supports PoE power module PAC240S56-CN |
| Maximum PoE Power | Up to 240 W (ambient temperature < 55 °C) |
| Without PoE Power Consumption | ~23.3 W (typical) |
| Typical Power Consumption (with moderate traffic, no optical modules) | ~16.4 W |
| Dimensions (without packaging) | 150.0 mm × 44.0 mm × 133.0 mm |
| Dimensions (with packaging) | 162.0 mm × 44.0 mm × 142.0 mm |
| Weight (without packaging) | ~1.0 kg |
| Weight (with packaging) | ~1.3 kg |
| Operating Temperature Range | −40 °C to +75 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Altitude | Operates up to 5000 m altitude; some restrictions above certain heights and in sealed cabinets |
| Enclosure / Design | Metal chassis, natural heat dissipation (no fans), IP40 rating |
| Surge Protection | Port surge-protection, power input surge protection included |
| Standards / Reliability | High availability; industrial reliability; designed for harsh environments; supports IEEE 1588v2 time synchronization |
| condition | new |
|---|
