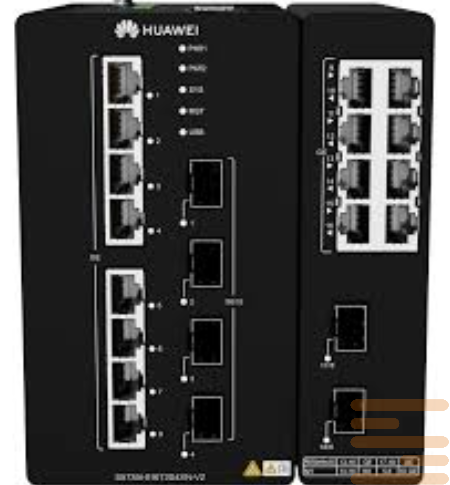

Switch Huawei CloudEngine S5735I-S16T2S4XN-V2
Huawei CloudEngine S5735I-S16T2S4XN-V2 Industrial (DIN-rail) all-Gigabit switch with GE/10GE uplinks; fanless; dual-redundant DC power input
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5735I-S16T2S4XN-V2:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine S5735I-S16T2S4XN-V2 |
| Description | Industrial (DIN-rail) all-Gigabit switch with GE/10GE uplinks; fanless; dual-redundant DC power input |
| Fixed Ports | 16 × 10/100/1000BASE-T downlink ports; 2 × GE SFP ports; 4 × 10GE SFP+ uplink ports; 1 × DI port; 1 × DO port; 1 × RS-485 port |
| Forwarding Performance | 87 million packets per second (Mpps) |
| Switching Capacity | 116 Gbps (switching capacity) / 520 Gbps (internal/non-blocking fabric) |
| PoE Support | Not supported |
| Operating Temperature Range | –40 °C to +75 °C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Heat Dissipation Mode | Natural heat dissipation (no fans) |
| Power Supply System | External DC power input; supports dual power modules for redundancy; input range 9.6 V to 60 V DC |
| Dimensions (without packaging) | 150.0 mm × 127.0 mm × 133.0 mm (basic, excluding protruding parts); max depth ~142.0 mm including rear protrusions |
| Dimensions (with packaging) | 175.0 mm × 230.0 mm × 280.0 mm |
| Weight (without packaging) | ~2.527 kg |
| Weight (with packaging) | ~3.019 kg |
| Typical Power Consumption | ~22.3 W |
| Maximum Power Consumption | ~31.3 W under low input voltage (≈ 10.8 V) / ~27.5 W under higher input voltage (≈ 48 V) |
| Storage Temperature Range | –40 °C to +85 °C |
| Operating Altitude | Up to 5000 m |
| Ingress Protection | IP40 |
| MTBF | ~62.87 years |
| Certifications / Reliability | Designed for industrial environments; metal chassis; redundant power; reliability > 0.99999; no fan noise (silent operation) |
| condition | new |
|---|
