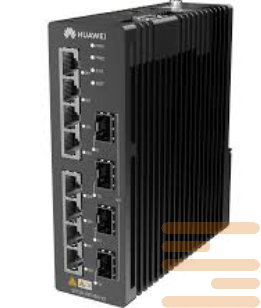

Switch Huawei CloudEngine S5735I-S8T8P2S4XN-V2
Huawei CloudEngine S5735I-S8T8P2S4XN-V2 16 × 10/100/1000Base-T RJ-45 ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5735I-S8T8P2S4XN-V2:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine S5735I-S8T8P2S4XN-V2 |
| Switch Type / Series | Industrial / DIN-rail Switch (S5735I-S-V2 Series) |
| Downlink Ports | 16 × 10/100/1000Base-T RJ-45 ports |
| PoE / PoE+ Ports | 8 of the 16 downlink ports support PoE+ |
| Uplink / Fiber Ports | 2 × GE SFP ports; 4 × 10GE SFP+ ports |
| Alarm / I/O Ports | 1 × DI (digital input); 1 × DO (digital output) |
| Management / Console / Other Ports | 1 × RS-485 port; Console via RJ-45; USB supported |
| Switching Capacity | 116 Gbps (device throughput) / 520 Gbps (system fabric) |
| Forwarding Performance | 87 million packets per second (Mpps) |
| Memory | 2 GB RAM |
| Flash Storage | 1 GB |
| Power Supply | External DC input; dual-redundant power supply / 1+1 backup |
| Rated Input Voltage | DC 56 V |
| Input Voltage Range | 54 V to 57 V DC for PoE/PoE+; also supports 48 V DC (PoE) |
| Maximum Input Current | 5 A |
| Heat Dissipation | Natural heat dissipation (fanless) |
| Ingress Protection | IP40 |
| Operating Temperature Range | –40 °C to +75 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Relative Humidity (Operating / Storage) | 5% to 95%, non-condensing |
| Operating & Storage Altitude | 0 to 5000 m |
| Power Supply Surge Protection | Power input: ±2 kV common-mode & ±1 kV differential mode; Service-port surge protection: ±6 kV common mode |
| Physical Dimensions (excluding protruding parts) | 150.0 mm × 127.0 mm × 133.0 mm |
| Enclosure / Chassis | Metal, industrial-grade; DIN-rail mounting |
| condition | new |
|---|
