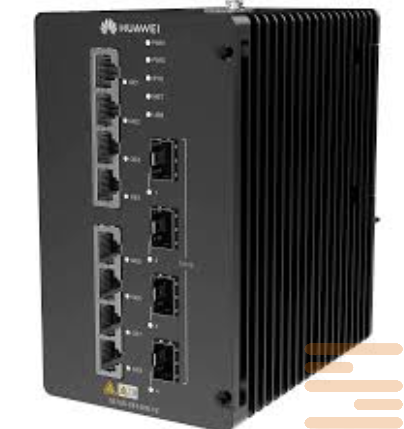

Switch Huawei CloudEngine S5735I-S8U2XN-V2
Huawei CloudEngine S5735I-S8U2XN-V2 8 × 10/100/1000Base-T Ethernet ports (Gigabit)
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5735I-S8U2XN-V2:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine S5735I-S8U2XN-V2 |
| Switch Type / Series | DIN-rail Industry Switch, S5735I-S Series |
| Downlink Ports | 8 × 10/100/1000Base-T Ethernet ports (Gigabit) |
| Uplink Ports | 2 × 10GE SFP+ ports |
| PoE Support | PoE++ supported |
| Power Supply Configuration | Supports external DC, or a dedicated power module; 1+1 power supply redundancy possible |
| Maximum PoE Power | ~210 W (with single power module) |
| Forwarding Performance | 42 Mpps |
| Switching Capacity | 56 Gbps |
| Operating Temperature Range | -40 °C to +75 °C |
| Relative Humidity (Operating) | 5% to 95% RH, non-condensing |
| Dimensions (without packaging) | 150.0 mm × 44.0 mm × 133.0 mm |
| Dimensions (with max protrusion / full depth) | 162.0 mm × 44.0 mm × 142.0 mm |
| Weight (without packaging) | ~1.0 kg |
| Weight (with packaging) | ~1.3 kg |
| Heat Dissipation Method | Natural heat dissipation (fanless) |
| Chassis / Build | Metal body, DIN-rail mountable |
| Protection / Enclosure Level | IP40 |
| Power Module Model Compatible | PAC240S56-CN or equivalent |
| Display / Indicator Features | Indicators per port: link / activity / PoE status etc. |
| Surge / Power Input Notes | Power module or DC input must meet PoE standard; otherwise PD port voltage may be insufficient |
| condition | new |
|---|
