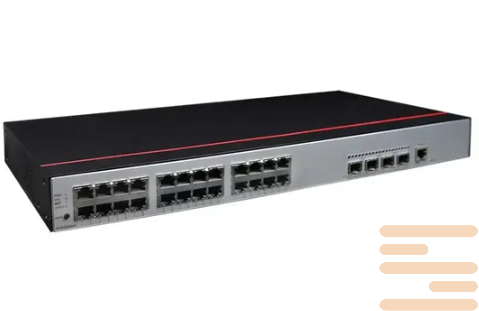

Switch Huawei CloudEngine S5735R-L24T4S-A-V2
CloudEngine S5735R-L24T4S-A-V2 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5735R-L24T4S-A-V2:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5735R-L24T4S-A-V2 |
| Product Series | CloudEngine S5735R-L-V2 |
| Form Factor | 1U, Rack-mounted |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm (1.72 in x 17.4 in x 8.66 in) |
| Weight | 3.44 kg (7.58 lbs) |
| Ports | 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
| PoE Support | No PoE support |
| Switching Capacity | 56 Gbps |
| Forwarding Performance | 42 Mpps |
| Power Supply | Built-in AC power module; rated voltage range: 100 V AC to 240 V AC, 50/60 Hz |
| Maximum Power Consumption | 33.4 W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Ingress Protection | IP20 (dustproof) |
| Mounting | Rack-mounted, 1U height |
| Compliance | CE, RoHS, WEEE, REACH |
| condition | new |
|---|
