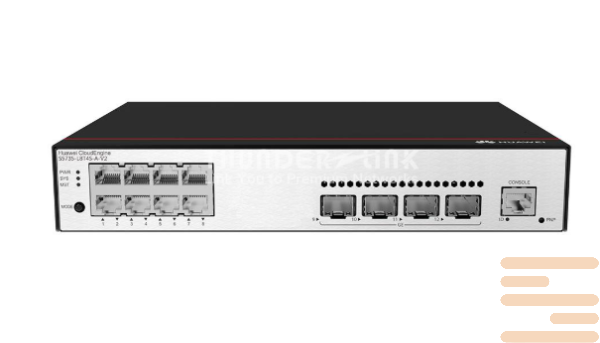

Switch Huawei CloudEngine S5735R-L8T4S-A-V2
CloudEngine S5735R-L8T4S-A-V2 8 × 10/100/1000 BASE-T RJ-45 ports 4 × GE SFP ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5735R-L8T4S-A-V2:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5735R-L8T4S-A-V2 |
| Fixed Ports | 8 × 10/100/1000 BASE-T RJ-45 ports 4 × GE SFP ports |
| Management & Interface Buttons | MODE button, PnP (plug-and-play) button to reset or restore to factory settings |
| Console Port | 1 × RJ-45 for console access |
| Grounding | Ground screw present for earthing |
| Power Supply | Built-in AC power module only (no external power slots or redundancy) |
| Cooling | Built-in fan—intelligent speed control; air intake from front/left, exhaust from right |
| Chassis & Dimensions (no packaging) | Metal 1U chassis; 43.6 × 250.0 × 180.0 mm (depth up to 187.0 mm including protrusions) |
| Dimensions (with packaging) | 90.0 × 370.0 × 380.0 mm |
| Weight (no packaging) | 1.41 kg |
| Weight (with packaging) | 2.22 kg |
| Typical Power Consumption | ~15.95 W |
| Static Power Consumption | ~10.52 W |
| Maximum Power Consumption | ~21.52 W |
| Typical Heat Dissipation | ~54.42 BTU/hour |
| Maximum Heat Dissipation | ~73.43 BTU/hour |
| Reliability (MTBF) | ~75.3 years; Availability > 99.999% |
| Noise Level | Sound power ~44.5 dB(A); sound pressure ~32.5 dB(A) (normal temperature, fan idle) |
| Fan & Power Slots Count | 1 fan module; 0 power or card slots (no modular expansion) |
| Redundancy | No redundant power supply support |
| Operating Temperature | –5 °C to +50 °C up to 1800 m altitude; derated above via −1 °C per 220 m elevation |
| Storage Temperature | –40 °C to +70 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Operating Altitude | Up to 5000 m (same applies to storage) |
| Memory | 2 GB RAM, 1 GB flash |
| Surge Protection | Service ports: ±7 kV common mode; Power: ±6 kV differential/common mode |
| Ingress Protection | IP20-rated enclosure |
| PoE | Not supported |
| condition | new |
|---|
