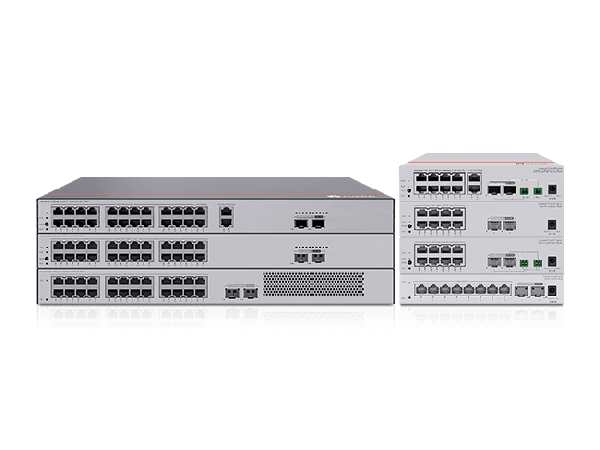

Switch Huawei CloudEngine S5751-L8P2HJ-RUA
CloudEngine S5751-L8P2HJ-RUA 8 × 10/100/1000BASE-T (PoE+)
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5751-L8P2HJ-RUA:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5751-L8P2HJ-RUA |
| Device Type | Remote Unit Switch with 10GE uplink |
| Downlink Ports | 8 × 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 2 × 100M / 1G / 2.5GE SFP (hybrid optical-electrical) |
| Switching Capacity | 98 Gbps |
| Forwarding Performance | 19.5 million packets per second (Mpps) |
| PoE Support | Yes — PoE+ |
| Power Supply Type | Hybrid power cable, 2 × Phoenix terminal, or AC adapter |
| Typical Power Consumption | ~ 13.14 W |
| Maximum Power Consumption (full PoE load) | ~ 55.82 W |
| Dimensions (H × W × D) | 43.6 mm × 195 mm × 160 mm |
| Weight (without packaging) | ~ 1.16 kg |
| Installation Methods | Desktop or wall-mounted |
| Operating Temperature Range | −5 °C to +45 °C |
| Storage Temperature Range | −40 °C to +70 °C |
| Operating Relative Humidity | 5% to 95%, non-condensing |
| Ingress Protection Level | IP20 |
| Cooling / Noise | Fanless; natural heat dissipation |
| Surge Protection (Power Input Port) | Differential mode ±4 kV; Common mode ±4 kV |
| condition | new |
|---|
