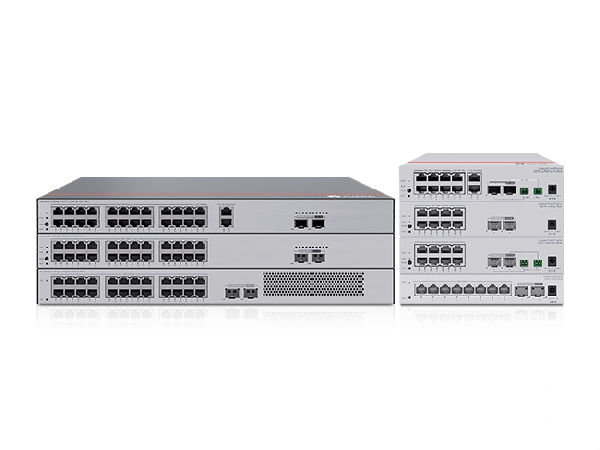

Switch Huawei CloudEngine S5751-L8P2J-RUA
CloudEngine S5751-L8P2J-RUA 8 × 10/100/1000BASE-T ports (PoE+)
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5751-L8P2J-RUA:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5751-L8P2J-RUA |
| Product Series / Family | CloudEngine S5751-L Remote Unit Switches |
| Downlink Ports | 8 × 10/100/1000BASE-T ports (PoE+) |
| Uplink Ports | 2 × 100M/1G/2.5GE SFP |
| Switching Capacity | 98 Gbps |
| Forwarding Performance | 19.5 million packets per second (19.5 Mpps) |
| Power Supply Type | External power adapter |
| Available PoE Power | 128 W total PoE power |
| Typical Power Consumption | ~16.74 W |
| Maximum Power Consumption | Without PoE: ~14.60 W (device only) |
| Heat Dissipation | Natural heat dissipation (no fans) |
| Dimensions (without packaging, H × W × D) | 43.6 mm × 195 mm × 160 mm |
| Maximum Dimensions (including protrusions, H × W × D) | 43.6 mm × 195 mm × 166.2 mm |
| Dimensions with packaging (H × W × D) | 116.0 mm × 285.0 mm × 300.0 mm |
| Chassis Height | 1 U |
| Weight without packaging | ~1.2 kg |
| Weight with packaging | ~2.38 kg |
| Operating Temperature | −5 °C to +45 °C |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity (Operating, non-condensing) | 5% to 95% |
| Ingress Protection Level | IP20 |
| Surge Protection (Power Port) | Differential mode: ±4 kV; Common mode: ±4 kV |
| condition | new |
|---|
