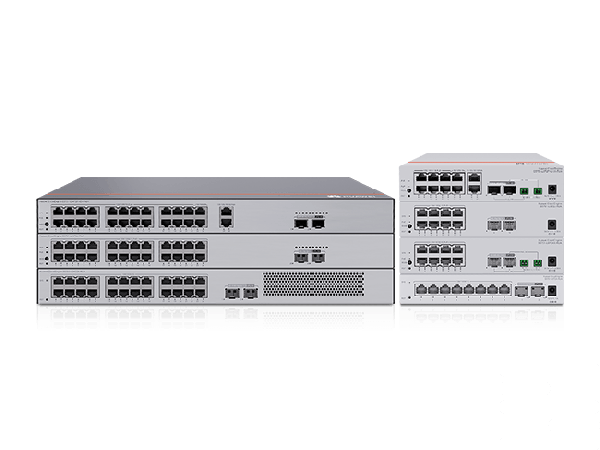

Switch Huawei CloudEngine S5751-L8T2HX-RUA
CloudEngine S5751-L8T2HX-RUA 2 × 100M/1G/2.5G/10GE SFP+ (hybrid optical-electrical)
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5751-L8T2HX-RUA:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5751-L8T2HX-RUA |
| Uplink Ports | 2 × 100M/1G/2.5G/10GE SFP+ (hybrid optical-electrical) |
| Downlink Ports | 8 × 10/100/1000BASE-T |
| Switching Capacity | 98 Gbps |
| Forwarding Performance | 42 million packets per second (42 Mpps) |
| PoE Support | Yes — PoE+ |
| Power Supply Type | Built-in AC or hybrid power cable with Phoenix terminal |
| Rated Voltage Range | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum Power Consumption | 160.45 W (with PD, PD power consumption of 125 W) |
| Dimensions (H × W × D) | 116 mm × 285 mm × 225 mm |
| Weight (Chassis) | 3.65 kg |
| Installation Methods | Rack mounting, desk mounting, wall mounting |
| Operating Temperature Range | −5 °C to +45 °C |
| Storage Temperature Range | −40 °C to +70 °C |
| Operating Relative Humidity | 5% to 95%, non-condensing |
| Ingress Protection Level | IP20 |
| Cooling / Noise | Fanless; natural heat dissipation |
| Surge Protection (Power Input Port) | Differential mode ±4 kV; Common mode ±4 kV |
| condition | new |
|---|
