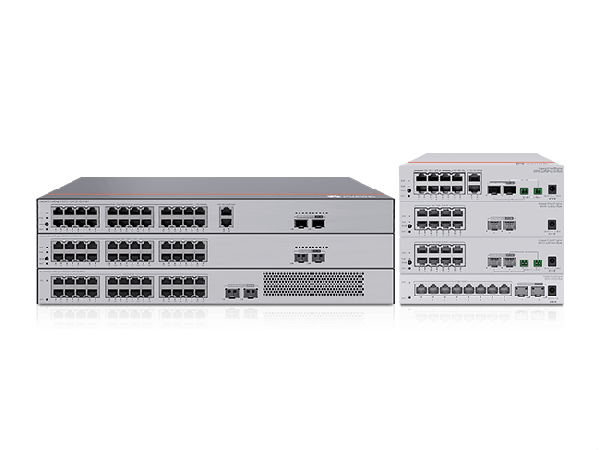

Switch Huawei CloudEngine S5751-L8T2X-RUA
CloudEngine S5751-L8T2X-RUA 8 × 10/100/1000BASE-T ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5751-L8T2X-RUA:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5751-L8T2X-RUA |
| Product Series / Family | CloudEngine S5751-L Remote Unit Switches |
| Downlink Ports | 8 × 10/100/1000BASE-T ports |
| Uplink Ports | 2 × 10GE SFP+ ports |
| Switching Capacity | 98 Gbps |
| Forwarding Performance | 42 million packets per second (42 Mpps) |
| Power Supply Type | Power adapter power supply |
| Typical Power Consumption | 13.14 W (via power adapter) |
| Maximum Power Consumption | ≈ 14~15 W (device with adapter) |
| Static Power Consumption | ~7.15 W |
| Dimensions (H × W × D, device only) | 43.6 mm × 195 mm × 160 mm |
| Maximum Depth (including protrusions) | 43.6 mm × 195 mm × 166.2 mm |
| Weight (device only, no packaging) | ~0.6 kg |
| Heat Dissipation / Cooling | Natural heat dissipation, fanless |
| Operating Temperature | –5 °C to +45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Operating Relative Humidity | 5% to 95%, non-condensing |
| Ingress Protection Level | IP20 |
| Certifications | Standard EMC & safety certifications |
| condition | new |
|---|
