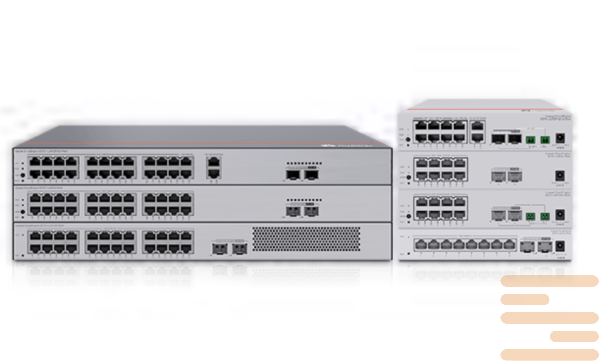

Switch Huawei CloudEngine S5751R-L24T2J2X-QA
CloudEngine S5751R-L24T2J2X-QA 24 × 10/100/1000BASE-T, 2 × 100M/GE/2.5GE SFP, 2 × 100M/GE/2.5/10GE SFP+
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5751R-L24T2J2X-QA:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5751R-L24T2J2X-QA |
| Downlink Ports | 24 × 10/100/1000BASE-T, 2 × 100M/GE/2.5GE SFP, 2 × 100M/GE/2.5/10GE SFP+ |
| Uplink Ports | 2 × 100M/GE/2.5/10GE SFP+ |
| Switching Capacity | 98 Gbps / 98 Gbps* |
| Forwarding Performance | 73.5 million packets per second (Mpps) |
| PoE Support | No |
| Power Supply Type | Built-in AC power supply |
| Dimensions (H × W × D) | 44 mm × 440 mm × 320 mm |
| Weight | 3.5 kg |
| Operating Temperature | −5 °C to +45 °C (at altitudes up to 1800 m) |
| Storage Temperature | −40 °C to +70 °C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Ingress Protection | IP20 |
| Cooling / Noise | Fanless; operates silently |
| Surge Protection | Differential mode ±4 kV; Common mode ±4 kV |
| condition | new |
|---|
