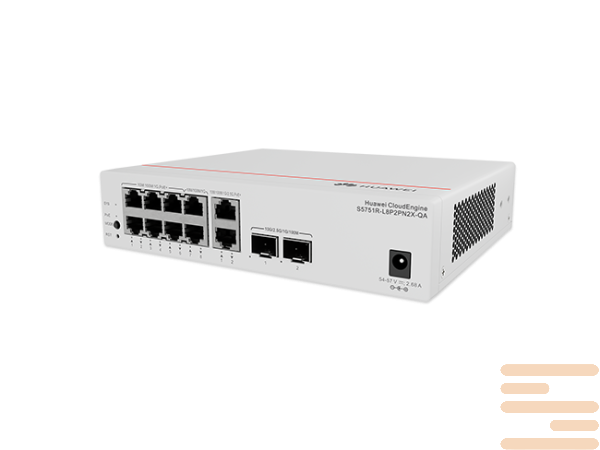

Switch Huawei CloudEngine S5751R-L8P2J-QA
CloudEngine S5751R-L8P2J-QA 8 × 10/100/1000BASE-T ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5751R-L8P2J-QA:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5751R-L8P2J-QA |
| Uplink Ports | 2 × 100M/GE/2.5GE SFP ports |
| Downlink Ports | 8 × 10/100/1000BASE-T ports |
| Switching Capacity | 26 Gbps / 98 Gbps* |
| Forwarding Performance | 19.5 million packets per second (Mpps) |
| PoE Support | No |
| Power Supply Type | Power supply via adapter |
| Rated Input Voltage | 170 V AC to 240 V AC, 50/60 Hz |
| Input Voltage Range | AC input: 170 V AC to 264 V AC; 47 Hz to 63 Hz |
| Maximum Power Consumption | 17.59 W (without PD); 161.02 W (with PD, PD power consumption of 128 W) |
| Dimensions (H × W × D) | 43.6 mm × 195 mm × 160 mm |
| Weight | 2.36 kg (including packaging) |
| Installation Methods | Wall-mounted or desktop-mounted |
| Operating Temperature Range | −5 °C to +45 °C |
| Storage Temperature Range | −40 °C to +70 °C |
| Operating Relative Humidity | 5% to 95%, non-condensing |
| Ingress Protection Level | IP20 |
| Cooling / Noise | Fanless; operates silently |
| Surge Protection (Power Input Port) | Differential mode ±4 kV; Common mode ±4 kV |
| condition | new |
|---|
