Huawei S5700 – a series of highly efficient, innovative switches that consist of a large number of devices and with a different number 1G ports. Switches are equipped with interfaces uplink 10G and massive software functionality (software).
Switches Huawei S5700 Designed for use in locations that require excellent, high throughput, low latency, and fault tolerance.
Depending on the functionality of the software, the switches of the series Huawei S5700 divided into several sub-series.
The switches are based on a high-performance platform of a unique design and a universal platform routing Huawei — Versatile Routing Platform (VRP).
The feature of this series of switches is: improved functionality 3-level, simplified operation and maintenance tools and flexible ways to organize an Internet network.

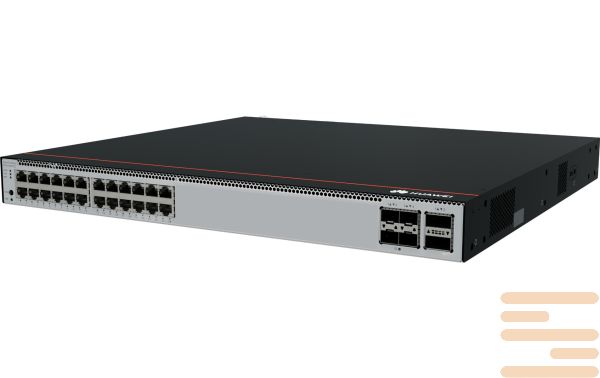

Technical specifications switch Huawei CloudEngine S5755-H24T4Y2CZ:
|
Model
|
CloudEngine S5755-H24T4Y2CZ
|
|
Fixed port
|
• 24×10/100/1000Base-T ports, 4 x 25GE SFP28, 2 x 100GE QSFP28 ports
|
|
Extended slot
|
• One extended slot
|
|
Dimensions (H x W x D)
|
• 43.6 mm x 442 mm x 420 mm
|
|
Chassis height
|
• 1U
|
|
Chassis weight (full configuration weight)
|
• 7.38kg
|
|
Power supply type
|
• 180 W AC (pluggable)
• 600 W AC (pluggable)
• 1200 W DC (pluggable)
|
|
Rated voltage range
|
• AC input : 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
• High-Voltage DC input: 240 V DC
• DC input : -48 VDC to - 60 V DC
|
|
Maximum voltage range
|
• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-Voltage DC input: 190 V DC to 290 V DC
• DC input: -38.4 V DC to -72 V DC
|
|
Maximum power consumption (input)
|
• 130 W
|
|
Operating temperature
|
• 0-1800 m altitude: -5°C to 45°C
• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
|
|
Storage temperature
|
• -40°C～70°C
|
|
Relative humidity
|
• 5% to 95% (non-condensing)
|
|
Surge protection specification (power port)
|
• AC power port: ±6 kV in differential mode, ±6 kV in common mode
• DC power port: ±2 kV in differential mode, ±4 kV in common mode
|
|
Heat dissipation
|
• Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
|
