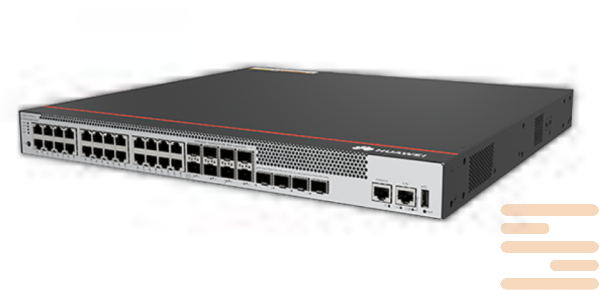

Switch Huawei CloudEngine S5755-S24P8J8YZ
CloudEngine S5755-S24P8J8YZ 588 Gbps (device) / 740 Gbps (system-wide) 24 × 10/100/1000 Base-T Ethernet ports (PoE+) 8 × FE/1/2.5 GE SFP downlink ports 8 × 1/2.5/10/25 GE SFP28 uplink ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5755-S24P8J8YZ:
| Category | Details |
|---|---|
| Product Model | CloudEngine S5755-S24P8J8YZ |
| Forwarding Performance | 340 Mpps |
| Switching Capacity | 588 Gbps (device) / 740 Gbps (system-wide) |
| Fixed Ports | 24 × 10/100/1000 Base-T Ethernet ports (PoE+) 8 × FE/1/2.5 GE SFP downlink ports 8 × 1/2.5/10/25 GE SFP28 uplink ports |
| Expansion Slot | 1 × extended card slot |
| Power Supply | 3 power supply slots, N+1 redundancy |
| MAC Features | Automatic MAC learning/aging; static, dynamic, blackhole entries; port/VLAN filtering |
| iPCA (Quality Awareness) | Real-time statistics on packet drops and loss at Layer 2/Layer 3 |
| VXLAN Support | L2 and L3 VXLAN gateways; centralized & distributed gateway modes; BGP-EVPN |
| Interoperability | VBST (PVST/PVST+/RPVST compatible); LNP (DTP-like); VCMP (VTP-like) |
| condition | new |
|---|
