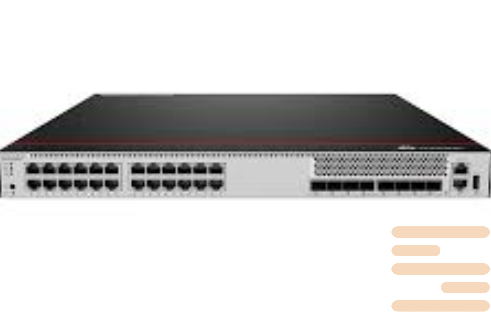

Switch Huawei CloudEngine S5755-S24P8Y
CloudEngine S5755-S24P8Y 448 Gbps (device) / 740 Gbps (system-wide)
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5755-S24P8Y:
| Category | Details |
|---|---|
| Product Model | CloudEngine S5755-S24P8Y |
| Forwarding Performance | 340 Mpps |
| Switching Capacity | 448 Gbps (device) / 740 Gbps (system-wide) |
| Fixed Ports | 24 × 10/100/1000 Base-T Ethernet ports 8 × 1/2.5/10/25 GE SFP28 ports |
| PoE Capability | Supports PoE+ (Power over Ethernet Plus) |
| Power Supply | 3 power supply slots, N+1 redundancy |
| Fans / Cooling | 2 fan modules, intelligent variable-speed, front-to-rear airflow |
| Dimensions (HxWxD) | 43.6 × 442 × 420 mm (device only) Max depth: 454 mm Rack height: 1U |
| Weight | 5.18 kg (without package) 6.93 kg (with package) |
| Power Consumption | Typical (30% load, dual power): ~60 W (AC) / ~57 W (DC) Maximum (no PoE load): ~62 W (AC) / ~59 W (DC) Static: ~29 W Full PoE load (3 × 1000 W modules): up to ~975 W |
| Heat Dissipation | Typical: ~205 BTU/hr (30% load) Maximum: ~212 BTU/hr (no PoE) Full PoE: up to ~3327 BTU/hr |
| MTBF / Availability | MTBF: ~109.3 years Availability: > 99.999% |
| Noise Levels | Acoustic power: ~52.2 dB(A) Acoustic pressure: ~38.5 dB(A) |
| Environmental Conditions | Operating: –5 °C to +45 °C (0–1800 m) Short-term up to +50 °C Storage: –40 °C to +70 °C Humidity: 5–95% RH non-condensing |
| Surge Protection | AC: ±6 kV (differential/common) DC: ±2 kV (diff.), ±4 kV (common) |
| Ingress Protection | IP20 |
| MAC Features | Auto-learning, static/dynamic/blackhole entries, filtering, learning limits |
| VXLAN Support | Layer 2 and Layer 3 VXLAN gateways, centralized & distributed, BGP-EVPN |
| iPCA (Telemetry) | Real-time packet loss/drop measurement at L2/L3 |
| Interoperability | VBST (PVST/PVST+/RPVST), LNP (DTP-like), VCMP (VTP-like) |
| Use Cases | Ideal for campus access networks requiring PoE+, high-performance uplinks, and advanced telemetry |
| condition | new |
|---|
