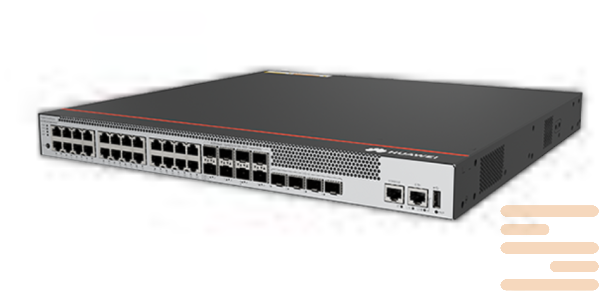

Switch Huawei CloudEngine S5755-S24T8Y
CloudEngine S5755-S24T8Y 24 × 10/100/1000 Base-T Ethernet ports; 8 × 1/2.5/10/25 GE SFP28 ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5755-S24T8Y:
| Category | Details |
|---|---|
| Product Model | CloudEngine S5755-S24T8Y |
| Forwarding Performance | 340 Mpps |
| Switching Capacity | 448 Gbps (device) / 740 Gbps (system-wide) |
| Fixed Ports | 24 × 10/100/1000 Base-T Ethernet ports; 8 × 1/2.5/10/25 GE SFP28 ports |
| Power Supply Type | 1+1 redundant (dual power modules supported) |
| MAC Features | Automatic MAC learning and aging; static, dynamic, and blackhole entries; packet filtering by MAC |
| iPCA (Quality Awareness) | Real-time statistics on dropped packets and packet loss rate at L2/L3 |
| VXLAN Support | Layer 2 and Layer 3 VXLAN with centralized and distributed gateways; BGP-EVPN; NETCONF configuration |
| Interoperability | Compatible with VBST (PVST/PVST+/RPVST), LNP (DTP-like), VCMP (VTP-like) |
| Environment & Form Factor | 1U chassis |
| condition | new |
|---|
