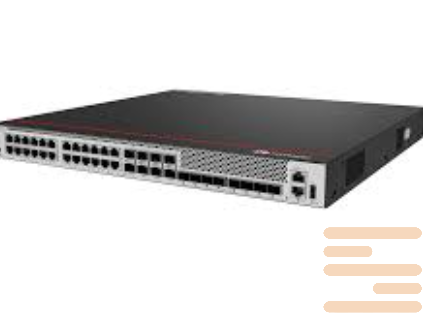

Switch Huawei CloudEngine S5755-S24U8J8YZ
CloudEngine S5755-S24U8J8YZ 24 × 10/100/1000 Base-T Ethernet ports; 8 × FE/1/2.5 GE SFP downlinks; 8 × 1/2.5/10/25 GE SFP28 uplinks
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5755-S24U8J8YZ:
| Category | Details |
|---|---|
| Product Model | CloudEngine S5755-S24U8J8YZ |
| Forwarding Performance | 340 Mpps |
| Switching Capacity | 588 Gbps (device) / 740 Gbps (system-wide) |
| Fixed Ports | 24 × 10/100/1000 Base-T Ethernet ports; 8 × FE/1/2.5 GE SFP downlinks; 8 × 1/2.5/10/25 GE SFP28 uplinks |
| Expansion Slot | 1 extended card slot supported |
| Power Supply | Dual power supply modules, 1+1 redundancy |
| Dimensions | Chassis height: 1U (metal) Packaging dimensions: 145 mm × 650 mm × 550 mm |
| Weight | Without packaging: 5.58 kg With packaging: 7.33 kg |
| Power Consumption (Typical) | ~59 W (AC, 80 W modules) / ~55 W (DC, 240 W modules) at 30% load |
| Heat Dissipation (Typical) | ~201.31 BTU/hr (AC) / ~187.66 BTU/hr (DC) at 30% load |
| Power Consumption (Maximum) | ~62 W (AC) / ~58 W (DC) at 100% load |
| Heat Dissipation (Maximum) | ~211.55 BTU/hr (AC) / ~197.90 BTU/hr (DC) at 100% load |
| Static Power Consumption | ~29 W |
| Reliability | MTBF: ~112.66 years Availability: > 99.999% |
| Noise Levels | Acoustic power: 51.1 dB(A) Acoustic pressure: 37.4 dB(A) |
| Slots / Fans | 1 extended slot, 2 power slots, 2 fan modules |
| Environmental Conditions | Operating (long-term): –5 °C to +45 °C (0–1800 m) Short-term: up to +50 °C (0–1800 m) Storage: –40 °C to +70 °C; Humidity: 5–95% RH non‑condensing; Altitude: up to 5000 m |
| MAC / VXLAN / Interoperability | Includes MAC auto-learning/aging, filtering, VXLAN (L2/L3 gateways, centralized & distributed), BGP‑EVPN support, NETCONF configuration, VBST/LNP interoperability capabilities |
| condition | new |
|---|
