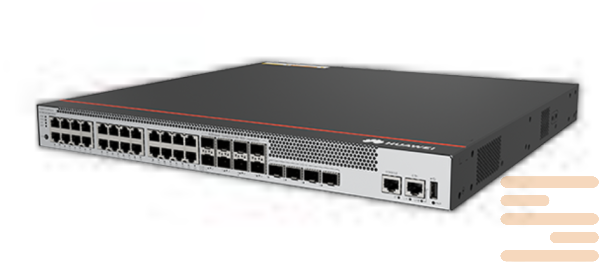

Switch Huawei CloudEngine S5755-S24U8Y
CloudEngine S5755-S24U8Y 448 Gbps (device) / 740 Gbps (system-wide)
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5755-S24U8Y:
| Category | Details |
|---|---|
| Product Model | CloudEngine S5755-S24U8Y |
| Forwarding Performance | 340 Mpps |
| Switching Capacity | 448 Gbps (device) / 740 Gbps (system-wide) |
| Fixed Ports | 24 × 10/100/1000 Base-T PoE++ Ethernet ports 8 × 1/2.5/10/25 GE SFP28 uplink ports |
| PoE Capability | Supports PoE++ (IEEE 802.3af/at/bt) |
| Maximum PoE Power Budget | Up to ~2268 W (depending on installed power modules) |
| CPU | Quad-core, 1.2 GHz |
| Memory / Storage | RAM: 4 GB Flash: 1 GB |
| Management Ports | 1 × RJ45 Ethernet management port 1 × RJ45 Console port 1 × USB 2.0 |
| Power Supply | Dual hot-swappable AC/DC power modules (N+1 redundancy supported) |
| Fans / Cooling | Intelligent variable-speed fans, hot-swappable |
| Dimensions (HxWxD) | 43.6 × 442 × 420 mm (device only) Max depth: 454 mm Rack height: 1U |
| Weight | ~8.05 kg (without packaging) |
| Power Consumption | Typical: ~65 W Maximum (without PoE load): ~70 W Full PoE load: up to ~2268 W |
| Heat Dissipation | Typical: ~222 BTU/hr Maximum (no PoE load): ~239 BTU/hr Full PoE load: up to ~7740 BTU/hr |
| Environmental Conditions | Operating: –5 °C to +45 °C (0–1800 m) Short-term: up to +50 °C Storage: –40 °C to +70 °C Humidity: 5–95% RH non-condensing Altitude: up to 5000 m |
| Surge Protection | AC: ±6 kV (differential/common) DC: ±2 kV (differential), ±4 kV (common) |
| Ingress Protection | IP20 |
| MTBF / Availability | MTBF: ~109 years Availability: > 99.999% |
| MAC Features | Supports up to ~330,000 MAC entries, auto-aging, filtering, VLAN/port limits |
| VLAN Support | Up to 4000 VLANs, QinQ, VLAN stacking, private VLAN |
| Routing Features | IPv4/IPv6 dual stack, static routing, RIP, OSPF, BGP, IS-IS, VRF, PBR, BGP-EVPN, SRv6 |
| Reliability & Resilience | STP/RSTP/MSTP, ERPS (G.8032), VRRP, BFD, M-LAG, SmartLink, Ethernet OAM, iStack |
| VXLAN Support | L2 and L3 VXLAN gateway, centralized/distributed, BGP-EVPN |
| Management & Telemetry | CLI, Web UI, SNMP v1/v2/v3, Telnet, SSHv2, sFlow, telemetry, FTP/TFTP/SFTP, Python-based OPS automation |
| Noise Levels | Acoustic power: ~54 dB(A) Acoustic pressure: ~40 dB(A) |
| condition | new |
|---|
