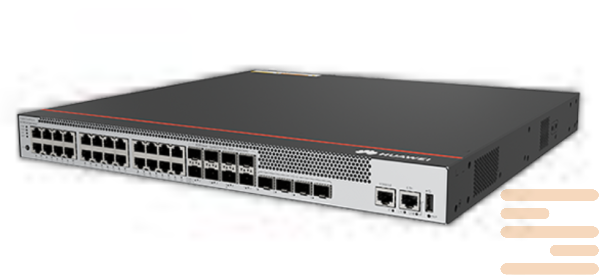

Switch Huawei CloudEngine S5755-S48U8Y
CloudEngine S5755-S48U8Y 48 × 10/100/1000 Base-T Ethernet ports (PoE++) 8 × 1/2.5/10/25 GE SFP28 uplink ports
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications switch Huawei CloudEngine S5755-S48U8Y:
| Category | Details |
|---|---|
| Product Model | CloudEngine S5755-S48U8Y |
| Fixed Ports | 48 × 10/100/1000 Base-T Ethernet ports (PoE++) 8 × 1/2.5/10/25 GE SFP28 uplink ports |
| Forwarding Performance | 340 Mpps |
| Switching Capacity | 496 Gbps (device) / 740 Gbps (system-wide) |
| Power Supply | Up to 3 slots, N+1 redundancy |
| PoE Support | PoE++ (IEEE 802.3bt) |
| Cooling | 2 built-in fans; airflow from front/right to rear |
| Dimensions (HxWxD) | 43.6 mm × 442 mm × 420 mm |
| Weight | 5.58 kg (without packaging) 7.33 kg (with packaging) |
| Power Consumption (Typical) | ~59 W (AC) / ~55 W (DC) at 30% load |
| Power Consumption (Maximum) | ~62 W (AC) / ~58 W (DC) at 100% load |
| Heat Dissipation (Typical) | ~201.31 BTU/hr (AC) / ~187.66 BTU/hr (DC) at 30% load |
| Heat Dissipation (Maximum) | ~211.55 BTU/hr (AC) / ~197.90 BTU/hr (DC) at 100% load |
| Reliability | MTBF: ~112.66 years Availability: >99.999% |
| Noise Levels | Acoustic power: 51.1 dB(A) Acoustic pressure: 37.4 dB(A) |
| Environmental Conditions | Operating: –5 °C to +45 °C (0–1800 m) Short-term: up to +50 °C (0–1800 m) Storage: –40 °C to +70 °C; Humidity: 5–95% RH non-condensing; Altitude: up to 5000 m |
| Surge Protection | AC: ±6 kV (differential/common) DC: ±2 kV (differential), ±4 kV (common) |
| Ingress Protection | IP20 |
| MAC Features | Auto-learning, auto-aging, filtering, MAC limit per VLAN/port |
| VLAN Support | Up to 4000 VLANs, QinQ, VLAN stacking, private VLAN |
| Routing Features | IPv4/IPv6 dual stack, static routing, RIP, OSPF, BGP, IS-IS, VRF, PBR, BGP-EVPN, SRv6 |
| Reliability & Resilience | STP/RSTP/MSTP, ERPS (G.8032), VRRP, BFD, M-LAG, SmartLink, Ethernet OAM, iStack |
| VXLAN Support | L2 and L3 VXLAN gateway, centralized/distributed, BGP-EVPN |
| Management & Telemetry | CLI, Web UI, SNMP v1/v2/v3, Telnet, SSHv2, sFlow, telemetry, FTP/TFTP/SFTP, Python-based OPS automation |
| condition | new |
|---|
