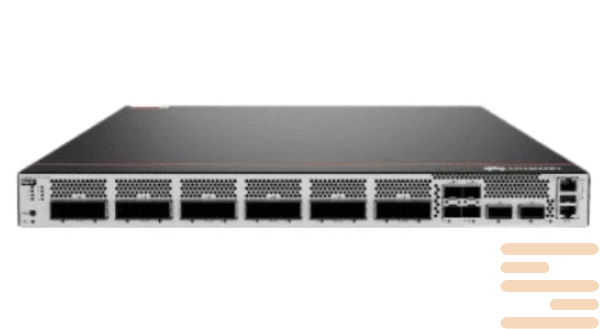

Switch Huawei CloudEngine S6730-H6FX4Y2CZ-V2
CloudEngine S6730-H6FX4Y2CZ-V2 6 × CFP2 PEN central ports (each supports 16 × 2.5/10GE SFP+ channels, up to 96 access devices); 4 × 25GE SFP28 ports; 2 × 100GE QSFP28 ports
CloudEngine S6700– A series of high -performance switches with a functional connection 10 GE, designed for organizing corporate Internet networks, as well as networks in general education and government agencies.
Into the functionality of switches CloudEngine S6700 integrated wireless access controller that supports to 1024 access points WLAN and gives an opportunity to combine the leading and wireless Internet.
Functionality of complete mobility Free Mobility Provides users equally quality Internet connection regardless of their stay. And the technology of network virtualization VXLAN gives an opportunity to organize a multi -purpose network.
Method Encrypted Communications Analytics promotes the detection of harmful codes in encrypted traffic. Thanks to the built-in security system, switches can easily detect suspicious traffic and fraudulent manipulations that can threaten the security of the Internet network.
TEnnical characteristics switch Huawei CloudEngine S6730-H6FX4Y2CZ-V2:
| Category | Details |
|---|---|
| Product Model | CloudEngine S6730-H6FX4Y2CZ-V2 |
| Fixed Ports | 6 × CFP2 PEN central ports (each supports 16 × 2.5/10GE SFP+ channels, up to 96 access devices); 4 × 25GE SFP28 ports; 2 × 100GE QSFP28 ports |
| Expansion Slots | 1 extended slot (for additional modules) |
| Switching Capacity | 2.52 Tbps (device) / up to 4.8 Tbps (system-wide) |
| Power Supply | Dual pluggable modules, 1+1 redundancy; supports both AC and DC types |
| Power Input Options | Pluggable AC (400W, 600W, 1200W) and DC (400W, 1200W) modules; supports mixed AC/DC setup |
| Typical Power Consumption | ~234 W (at ~30% load, per ATIS standard) |
| Maximum Power Consumption | ~281 W |
| Static Power Consumption | ~142 W |
| Thermal Output | Typical: ~798 BTU/hr; Maximum: ~959 BTU/hr |
| Dimensions | Without protrusions: 43.6 × 442.0 × 420.0 mm (H×W×D); Max depth: 455.0 mm; Rack height: 1U |
| Weight | Without packaging: ~6.66 kg; With packaging: ~9.38 kg |
| Cooling & Fans | 4 pluggable fan modules; intelligent variable-speed airflow; front intake → rear exhaust |
| Environmental Conditions | Operating: –5 °C to +45 °C (0–1800 m), with altitude adjustment up to 5000 m; Storage: –40 °C to +70 °C; Humidity: 5–95% RH non-condensing |
| Noise Levels | Acoustic power: ~53.5 dB(A); Acoustic pressure: ~50.5 dB(A) |
| MTBF / Availability | MTBF: ~51.8 years; Availability: > 99.999 % |
| Interfaces / Ports | Console: RJ-45; Ethernet management: RJ-45; USB: supported; RTC: supported |
| Surge Protection | AC modules: ±6 kV (differential and common mode); DC modules: ±2 kV (diff.), ±4 kV (common) |
| Ingress Protection | IP20 |
| Key Functional Features | • MAC: Auto-learning, static/dynamic/blackhole entries, filtering• VXLAN: Distributed & centralized gateways, BGP-EVPN, route switching• iPCA: Real-time packet loss and drop statistics• QoS: Multi-level classification, scheduling, low-latency queues• Interoperability: VBST, LNP, VCMP |
| condition | new |
|---|
