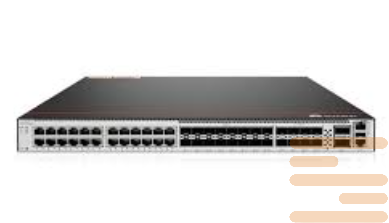

Switch Huawei CloudEngine S6750-S16X10Y2CZ
CloudEngine S6750-S16X10Y2CZ 1.42 Tbps (device) / 2.32 Tbps (system-wide)
CloudEngine S6730-H – A series of high -performance switches with a functional connection 10 GE, designed for organizing corporate Internet networks, as well as networks in general education and government agencies.
Into the functionality of switches CloudEngine S6730-H integrated wireless access controller that supports to 1024 access points WLAN and gives an opportunity to combine the leading and wireless Internet.
Functionality of complete mobility Free Mobility Provides users equally quality Internet connection regardless of their stay. And the technology of network virtualization VXLAN gives an opportunity to organize a multi -purpose network.
Method Encrypted Communications Analytics promotes the detection of harmful codes in encrypted traffic. Thanks to the built-in security system, switches can easily detect suspicious traffic and fraudulent manipulations that can threaten the security of the Internet network.
TEnnical characteristics switch Huawei CloudEngine S6750-S16X10Y2CZ:
| Category | Details |
|---|---|
| Product Model | CloudEngine S6750-S16X10Y2CZ |
| Forwarding Performance | 450 Mpps |
| Switching Capacity | 1.42 Tbps (device) / 2.32 Tbps (system-wide) |
| Fixed Ports | 16 × 10GE SFP+ downlink ports 10 × 25GE SFP28 downlink ports 2 × 40/100GE QSFP28 uplink ports |
| Expansion Slots | 2 expansion slots |
| Power Supply | Dual pluggable power modules, 1+1 redundancy |
| Power Input Range | AC: 90–290 V, 45–66 Hz HVDC: 190–290 V LVDC: –38.4 to –72 V |
| Memory / Storage | 4 GB DRAM, 2 GB Flash |
| Management Ports | 1 × RJ-45 Console 1 × RJ-45 Ethernet Management USB port RTC supported |
| Protection & Compliance | Surge: AC ±6 kV (diff./common), DC ±2 kV (diff.), ±4 kV (common) Ingress protection: IP20 |
| Cooling & Fans | Pluggable fan modules, hot-swappable Intelligent variable-speed fans Front & right intake, rear exhaust |
| Environmental Specs | Operating temperature: 0 °C to +45 °C Storage temperature: –40 °C to +70 °C Humidity: 5–95% RH non-condensing Altitude: up to 5000 m |
| Dimensions (HxWxD) | 43.6 mm × 442 mm × 420 mm (without protrusions) Max depth with protrusions: 454 mm |
| Weight | 5.20 kg (without package) 7.67 kg (with package) |
| Typical Power Consumption | 79 W (AC) / 73 W (DC) at 30% load |
| Maximum Power Consumption | 85 W (AC) / 78 W (DC) at 100% load |
| Static Power Consumption | 50 W |
| Thermal Output (Max) | 290 BTU/hr (AC), 266 BTU/hr (DC) |
| MTBF / MTTR | MTBF: 81.4 years MTTR: 1.47 hours |
| Noise Levels | Acoustic power: 54.2 dB(A) Acoustic pressure: 41.2 dB(A) |
| Functional Features | • MAC: Auto-learning, static/dynamic, blackhole, filtering, learning limits • VXLAN: Distributed & centralized gateways, BGP-EVPN • SRv6 and MACsec supported • iPCA: Packet drop/loss measurement • QoS: Full classification, scheduling, congestion control, low-latency multicast queues • Interoperability: VBST, LNP, VCMP |
| Use Cases | Designed for high-performance aggregation and core layers in campus networks, data centers, and cloud environments |
| condition | new |
|---|
