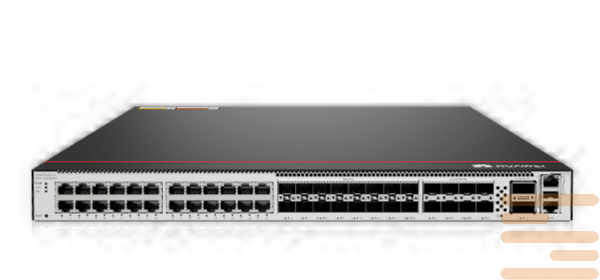

Switch Huawei CloudEngine S6750-S16X8YZ
CloudEngine S6750-S16X8YZ 1 U fixed switch, with one expansion slot 450 Mpps 920 Gbps (device) / 2.32 Tbps (system-wide)
CloudEngine S6730-H – A series of high -performance switches with a functional connection 10 GE, designed for organizing corporate Internet networks, as well as networks in general education and government agencies.
Into the functionality of switches CloudEngine S6730-H integrated wireless access controller that supports to 1024 access points WLAN and gives an opportunity to combine the leading and wireless Internet.
Functionality of complete mobility Free Mobility Provides users equally quality Internet connection regardless of their stay. And the technology of network virtualization VXLAN gives an opportunity to organize a multi -purpose network.
Method Encrypted Communications Analytics promotes the detection of harmful codes in encrypted traffic. Thanks to the built-in security system, switches can easily detect suspicious traffic and fraudulent manipulations that can threaten the security of the Internet network.
TEnnical characteristics switch Huawei CloudEngine S6750-S16X8YZ:
| Category | Details |
|---|---|
| Product Model | CloudEngine S6750-S16X8YZ |
| Form Factor & Slots | 1 U fixed switch, with one expansion slot |
| Forwarding Performance | 450 Mpps |
| Switching Capacity | 920 Gbps (device) / 2.32 Tbps (system-wide) |
| Fixed Ports | - 16 × 1/2.5/10 GE SFP+ ports (downlink)- 8 × 1/2.5/10/25 GE SFP28 ports (uplink) |
| Memory / Storage | 4 GB DRAM, 2 GB Flash |
| Power Supply | Dual pluggable modules for 1+1 redundancy, power module sold separately |
| Power Input Types | Supports AC (90–290 V), high-voltage DC (190–290 V), low-voltage DC (–38 V to –72 V) |
| Cooling / Fans | Pluggable fan modules (type FAN-031A-B), hot-swappable; airflow from right & front to rear |
| Dimensions (HxWxD) | - Without protrusions: 43.6 × 442 × 420 mm- Max depth including protrusions: 454 mm |
| Weight | (Not specified) |
| Security & Virtualization | Supports VXLAN (centralized/distributed), BGP-EVPN, SRv6, MACsec |
| Operations & Management | In-band telemetry (IFIT), NETCONF, cloud management, programmable forwarding |
| Environmental Specs | Operating temperature: –5 °C to +45 °CHumidity: 5–95% non-condensingAltitude: up to 5000 m |
| condition | new |
|---|
