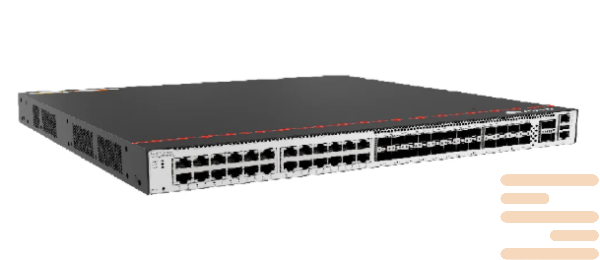

Switch Huawei CloudEngine S6750-S24T16X8Y2CZ
CloudEngine S6750-S24T16X8Y2CZ 968 Gbps (device) / 2.32 Tbps (system-wide)
CloudEngine S6700– A series of high -performance switches with a functional connection 10 GE, designed for organizing corporate Internet networks, as well as networks in general education and government agencies.
Into the functionality of switches CloudEngine S6700 integrated wireless access controller that supports to 1024 access points WLAN and gives an opportunity to combine the leading and wireless Internet.
Functionality of complete mobility Free Mobility Provides users equally quality Internet connection regardless of their stay. And the technology of network virtualization VXLAN gives an opportunity to organize a multi -purpose network.
Method Encrypted Communications Analytics promotes the detection of harmful codes in encrypted traffic. Thanks to the built-in security system, switches can easily detect suspicious traffic and fraudulent manipulations that can threaten the security of the Internet network.
TEnnical characteristics switch Huawei CloudEngine S6750-S24T16X8Y2CZ:
| Category | Details |
|---|---|
| Product Model | CloudEngine S6750-S24T16X8Y2CZ |
| Forwarding Performance | 450 Mpps |
| Switching Capacity | 968 Gbps (device) / 2.32 Tbps (system-wide) |
| Fixed Ports | • 24 × 10M/100M/1000M Base-T Ethernet ports• 16 × 10GE SFP+ ports• 8 × 25GE SFP28 ports• 2 × 40GE/100GE QSFP28 ports |
| Expansion Slots | Two expansion slots |
| Power Supply | Two hot-swappable power module slots, 1+1 redundancy |
| Memory / Storage | 4 GB DRAM, 2 GB Flash |
| Management Ports | • 1 × RJ-45 Console• 1 × RJ-45 Ethernet Management• USB port• RTC supported (real-time clock) |
| Cooling & Fans | Two pluggable fan modules (FAN-031A-B), intelligent airflow; intake from front & right, exhaust rear |
| Dimensions | Without protrusions: 43.6 × 442 × 420 mmMax depth (including protrusions): 454 mm |
| Weight | 5.52 kg (device only); 7.96 kg (packaged) |
| Power Consumption | • Typical (30% load): 122 W (AC), 118 W (DC)• Maximum (100% load): 127 W (AC), 123 W (DC)• Static: 77 W |
| Thermal Output | • Typical: 416 BTU/hr (AC), 403 BTU/hr (DC)• Maximum: 433 BTU/hr (AC), 420 BTU/hr (DC) |
| MTBF / Availability | MTBF: 47.17 years; Availability: > 0.99999 |
| Noise Levels | Acoustic power: 54.2 dB(A); Acoustic pressure: 41.2 dB(A) |
| Environmental Conditions | • Operating: –5 °C to +45 °C (0–1800 m); short-term up to +50 °C• Storage: –40 °C to +70 °C• Humidity: 5–95% RH non-condensing• Altitude: up to 5000 m |
| Protection & Compliance | Surge protection: AC ±6 kV (diff/common), DC ±2 kV (diff), ±4 kV (common); Ingress: IP20; EMC, safety, manufacturing certifications |
| Port & Hardware Details | Includes PNP reset button; grounded chassis; card slot (supported HSIC modules) |
| Virtualization & Security | VXLAN (distributed/centralized gateway), BGP-EVPN; MACsec encryption on all ports |
| Telemetry & Management | In-band telemetry (IFIT), real-time packet loss/drop stats (iPCA); advanced QoS; interoperability: VBST, LNP, VCMP |
| Use Cases | Highly suited for core/aggregation layers in campus, data center, and cloud network environments |
| condition | new |
|---|
