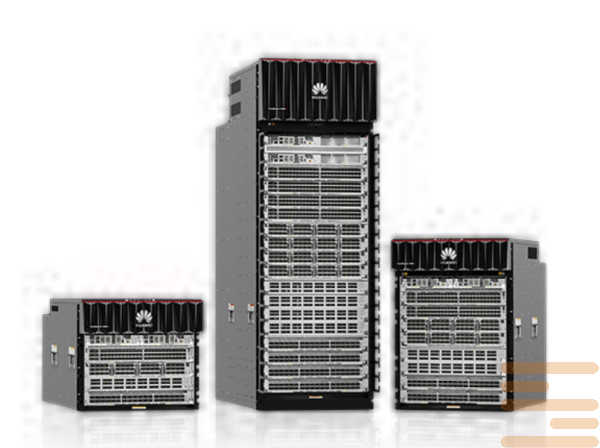

Switch Huawei CloudEngine XH16800-8
SKU
XH16800-8
EAN:
21424
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine XH16800-8 Dual-input power supply system: N+1 backup recommended; Single-input power supply system: N+1 backup
Category: Huawei Switch
Huawei CloudEngine 16800 – These are new high -tech switches for data processing centers. CloudEngine 16800 Applies a unique innovative Ilossless innovative algorithm that studies and teaches, and adjusts traffic on the real -time network, thereby implementing network adaptation and self -optimization. With zero packet loss and E2E delay of μs, the highest possible throughput is achieved.
Switching capacity of hardware devices 173/1548 TbIT/s, they support smooth evolution up to 400 GE taking into account the inevitable demand for digital traffic.
Specifications of the switch Huawei CloudEngine XH16800-8:| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine XH16800-8 |
| Service Slots | 8 |
| Switching Fabric Slots | 9 |
| Switching Capacity | 357 Tbps (non-blocking) |
| Forwarding Performance | 52,200 Mpps |
| Airflow Design | Strict front-to-back airflow |
| Power Supply | AC and high-voltage DC options |
| Power Modules | 10 (N+1 redundancy recommended) |
| Redundancy | Dual-input power supply system: N+1 backup recommended; Single-input power supply system: N+1 backup |
| MPU Redundancy | 1:1 redundancy |
| Fabric Redundancy | N+M redundancy |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | –40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Rack Units (RU) | 15.8U |
| Dimensions (H x W x D) | 703 mm × 483 mm × 985 mm |
| Weight | Approximately 129.8 kg (without packaging) |
| Compliance | Designed for data center environments |
| condition | new |
|---|
