Switch Huawei CloudEngine XH9210-32DQ
SKU
XH9210-32DQ
EAN:
21427
Condition:
new
Stock:
available on order
Lead time:
25-35 days
CloudEngine XH9210-32DQ 32 × 400GE QSFP-DD 2 × 10GE SFP+
Category: Huawei Switch

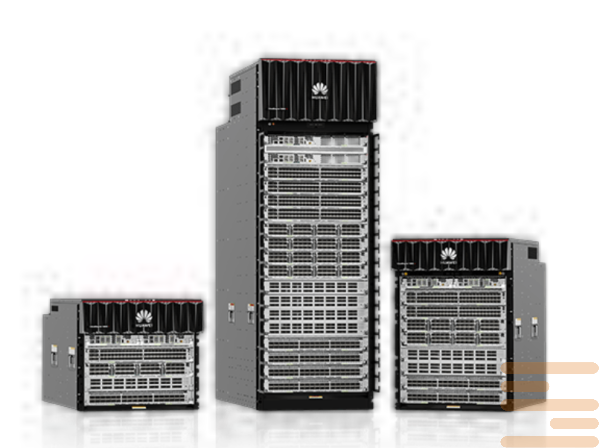

Huawei CloudEngine 16800 – These are new high -tech switches for data processing centers. CloudEngine 16800 Applies a unique innovative Ilossless innovative algorithm that studies and teaches, and adjusts traffic on the real -time network, thereby implementing network adaptation and self -optimization. With zero packet loss and E2E delay of μs, the highest possible throughput is achieved.
Switching capacity of hardware devices 173/1548 TbIT/s, they support smooth evolution up to 400 GE taking into account the inevitable demand for digital traffic.
Specifications of the switch Huawei CloudEngine XH9210-32DQ:| Parameter | Specification |
|---|---|
| Model | CloudEngine XH9210-32DQ |
| Series | XH9000 Series |
| Switching Capacity | 25.6 Tbps |
| Forwarding Performance | 8,000 Mpps |
| Downlink Ports | 32 × 400GE QSFP-DD |
| Uplink Ports | 2 × 10GE SFP+ |
| Buffer Memory | 130 MB |
| CPU | 16-core, 2.0 GHz |
| Memory | 16 GB DRAM |
| Storage | 64 MB NOR Flash (×2), 4 GB SSD |
| Power Supply | Dual AC/DC/HVDC pluggable modules (1+1 redundancy) |
| Input Voltage Range | AC: 90–290 V; DC: –38.4 to –72 V or +38.4 to +57 V; HVDC: 260–400 V |
| Power Consumption | Maximum: 943 W (short-distance optical modules on all ports, normal temperature) |
| Heat Dissipation | Maximum: 3,218 BTU/hour (with short-distance optical modules on all ports) |
| Airflow Design | Port-side intake |
| Mounting | 19-inch rack, 1U form factor |
| Dimensions (HxWxD) | 44.5 mm × 440 mm × 650 mm |
| Weight | 9.94 kg (without packaging); 12.78 kg (with packaging) |
| Compliance | CE, UL, RoHS, WEEE |
| Software Platform | Huawei VRP8 |
| Management Features | NETCONF, Ansible, Zero Touch Provisioning (ZTP), Telemetry |
| Overlay Support | VXLAN routing and bridging |
| Control Plane Protocols | BGP-EVPN |
| Reliability Features | MACsec, Hardware-based BFD, DPFR |
| Time Synchronization | IEEE 1588v2 |
| AI Features | iLossless algorithm for zero packet loss and μs-level latency |
| condition | new |
|---|
