Huawei S5700 – a series of high-performance, innovative switches that consist of a large number of devices and with a different number of 1G ports. Switches are equipped with interfaces uplink 10G and huge software functionality (software).
Huawei S5700 – a series of high-performance, innovative switches that consist of a large number of devices and with a different number of 1G ports. Switches are equipped with interfaces uplink 10G and huge software functionality (software).
switches Huawei S5700 Designed for use in locations that require excellent, high throughput, low latency and fault tolerance.
Depending on the functionality of the software, the switches of the series Huawei S5700 divided into several sub-sections.
Switches are based on a high-performance platform of a unique design and a universal routing platform Huawei — Versatile Routing Platform (VRP).
This switch series features: improved functionality 3-level, simplified operation and maintenance tools and flexible ways to organize the Internet.

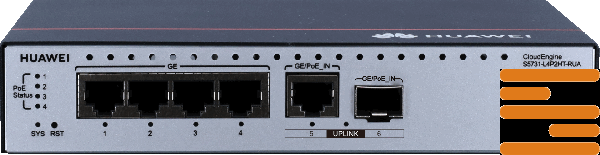

Specifications switch Huawei S5731-L4P2HW-RUA:
|
Product Model
|
CloudEngine S5731-L4P2HW-RUA
|
CloudEngine S5731-L4P2HT-RUA
|
CloudEngine S5731-L4T2S-RUA
|
CloudEngine S5731-L4P2S-RUA
|
CloudEngine S5731-L4T2ST-RUA
|
CloudEngine S5731-L4P2ST-RUA
|
|
Forwarding Performance
|
9 Mpps
|
9 Mpps
|
9 Mpps
|
9 Mpps
|
9 Mpps
|
9 Mpps
|
|
Switching Capacity2
|
12 Gbit/s
|
12 Gbit/s
|
12 Gbit/s
|
12 Gbit/s
|
12 Gbit/s
|
12 Gbit/s
|
|
Uplink Ports
|
1 x GE SFP (hybrid), 1 x GE SFP (hybrid)
|
1 x GE SFP (hybrid), 1 x 10/100/1000 Base-T Ethernet port
|
1 x GE SFP (built-in SC optical module), 1 x GE SFP
|
1 x GE SFP (built-in SC optical module), 1 x GE SFP
|
1 GE SFP, 1 x 10/100/1000 Base-T Ethernet ports
|
1 GE SFP, 1 x 10/100/1000 Base-T Ethernet ports
|
|
Downlink Ports
|
4 x 10/100/1000 Base-T Ethernet ports
|
4 x 10/100/1000 Base-T Ethernet ports
|
4 x 10/100/1000 Base-T Ethernet ports
|
4 x 10/100/1000 Base-T Ethernet ports
|
4 x 10/100/1000 Base-T Ethernet ports
|
4 x 10/100/1000 Base-T Ethernet ports
|
|
Power Supply Type
|
AC/DC adapter or optical-electrical PoE
|
AC/DC adapter, PoE or optical-electrical PoE
|
AC/DC adapter
|
AC/DC adapter
|
AC/DC adapter
|
AC/DC adapter
|
|
PoE++
|
PoE++
|
PoE++
|
N/A
|
PoE++
|
N/A
|
PoE++
|
