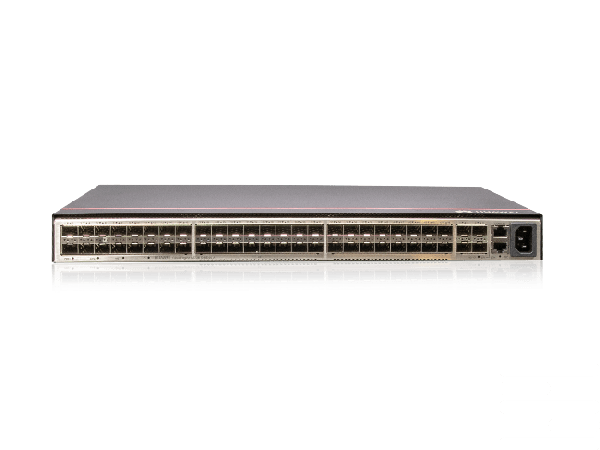

Huawei S5700 – a series of high-performance, innovative switches that consist of a large number of devices and with a different number of 1G ports. Switches are equipped with interfaces uplink 10G and huge software functionality (software).
switches Huawei S5700 Designed for use in locations that require excellent, high throughput, low latency and fault tolerance.
Depending on the functionality of the software, the switches of the series Huawei S5700 divided into several sub-sections.
Switches are based on a high-performance platform of a unique design and a universal routing platform Huawei — Versatile Routing Platform (VRP).
This switch series features: improved functionality 3-level, simplified operation and maintenance tools and flexible ways to organize the Internet.
Specifications switch Huawei S5736-S48S4X-A:
|
Parameters
|
CloudEngine S5736-S24S4XC
|
CloudEngine S5736-S48S4XC
|
CloudEngine S5736-S48S4X-A
|
CloudEngine S5736-S48S4X-D
|
|
Forwarding Performance
|
240 mpps
|
240 mpps
|
480 mpps
|
480 mpps
|
|
Switching Capacity2
|
448 Gbit/s / 1.36 Tbit/s
|
496 Gbit/s / 1.36 Tbit/s
|
1.04/2.72 Tbit/s
|
1.04/2.72 Tbit/s
|
|
Fixed Ports
|
24 x GE SFP ports, 4 x 10 GE SFP+ ports
|
48 x GE SFP ports, 4 x 10 GE SFP+ ports
|
48 x GE SFP ports, 4 x 10 GE SFP+ ports
|
48 x GE SFP ports, 4 x 10 GE SFP+ ports
|
|
Flexible Upgrade
|
Not supported
|
Not supported
|
Smooth upgrade of downlink ports from GE to 10 GE based on RTU licenses
|
|
MAC Features
|
IEEE 802.1d compliance
Automatic MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
|
|
VLAN Features
|
4094 VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
|
|
IP Routing
|
Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
|
|
Super Virtual Fabric (SVF)
|
Plug-and-play of SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client running
|
|
Interoperability
|
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
|
