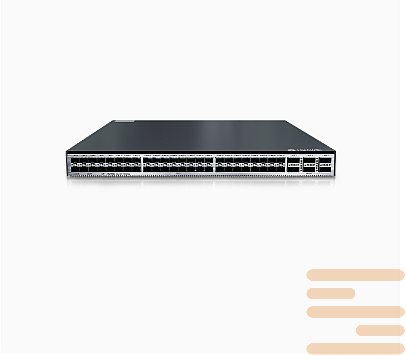

Switch Huawei S6730-H48X6C-TV2

SKU

S6730-H48X6C-TV2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Call for Price

EAN: 17619

Stock: available on order

Lead time: 25-35 days

48 x 10 GE SFP+, 6 x 40/100 GE QSFP28

Category: Huawei Switch

Details

Huawei CloudEngine S6730-H-V2 — next-level 10 GE switches that offer 24-port, 28-port, 48-port hardware devices and provide six 100GE uplink ports with one extended slot.

Switch Series CloudEngine S6730-H-V2 — 10 GE routing switches of innovative level, which are designed on the basis of a single, monolithic Huawei programmable platform and have various functions IDN. such as support VXLAN to provide one network for several tasks at once, including; free mobility function, it provides constant interaction with the operator and user.

Switch Specifications Huawei S6730-H48X6C-TV2:

Product Model	CloudEngine S6730-H24X6C-V2 CloudEngine S6730-H24X6C-TV2	CloudEngine S6730-H48X6C-V2 CloudEngine S6730-H48X6C-TV2	CloudEngine S6730-H28X6CZ-V2 CloudEngine S6730-H28X6CZ-TV2	CloudEngine S6730-H48X6CZ-V2 CloudEngine S6730-H48X6CZ-TV2
Forwarding Performance	490Mpps	490Mpps	490Mpps	490Mpps
Switching Capacity²	1.68 Tbps/2.4 Tbps	2.16 Tbps/2.4 Tbps	1.76 Tbps/2.4 Tbps	2.16 Tbps/2.4 Tbps
Fixed Ports	24 x 10 GE SFP+, 6 x 40/100 GE QSFP28	48 x 10 GE SFP+, 6 x 40/100 GE QSFP28	28 x 10 GE SFP+, 6 x 40/100 GE QSFP28	48 x 10 GE SFP+, 6 x 40/100 GE QSFP28
Extended Slots	NA	NA	1*extended slot
Flexible Networking	the uplink port is 40Gbps by default, which can be upgraded to 100GE through the license.
iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol

Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)
