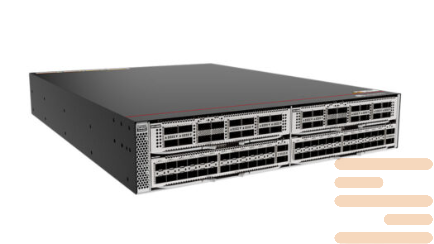

Switch Huawei S6780-H4Z
SKU
S6780-H4Z
EAN:
20304
Condition:
new
Stock:
available on order
Lead time:
25-35 days
CloudEngine S6780-H4Z 4 half-width card slots, supporting combinations: 24 × GE/2.5GE/10GE (SFP+) + 2 × 40GE/100GE (QSFP28) 24 × GE/2.5GE/10GE/25GE (SFP28) + 2 × 40GE/100GE (QSFP28)
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications switch Huawei S6780-H4Z:
| Category | Details |
|---|---|
| Product Model | CloudEngine S6780-H4Z |
| Forwarding Performance | 2400 Mpps |
| Switching Capacity | 14.4 Tbps / 16 Tbps |
| Fixed Ports (Flexible Slots) | 4 half-width card slots, supporting combinations: • 24 × GE/2.5GE/10GE (SFP+) + 2 × 40GE/100GE (QSFP28) • 24 × GE/2.5GE/10GE/25GE (SFP28) + 2 × 40GE/100GE (QSFP28) • 10 × 40GE/100GE QSFP28 • 16 × 40GE QSFP • 16 × 40GE/100GE QSFP28 • 8 × GE/2.5GE/10GE/25GE (SFP28) + 4 × 400GE (QSFP-DD) |
| Power Supply | 1+1 redundancy, AC and DC supported |
| Power Input Range | • AC: 90–290 V, 45–65 Hz • DC: 190–290 V or –38.4 to –72 V |
| Memory / Storage | 8 GB memory, 4 GB flash |
| Management Ports | 1 × RJ-45 Console, 1 × RJ-45 Ethernet Management, USB |
| Cooling | Intelligent variable-speed fans, front-to-rear airflow |
| Protection | • AC surge: ±6 kV (differential/common mode) • DC surge: ±2 kV (diff.), ±4 kV (common) • Ingress protection: IP20 |
| Environmental Specs | • Operating altitude: up to 5000 m • Storage temperature: –40 °C to +70 °C • Operating humidity: 5–95% RH non-condensing |
| Dimensions (W × D × H) | 442 mm × 600 mm × 88.1 mm (2U) |
| Weight | 20.50 kg (without package), 26.82 kg (with package) |
| condition | new |
|---|
