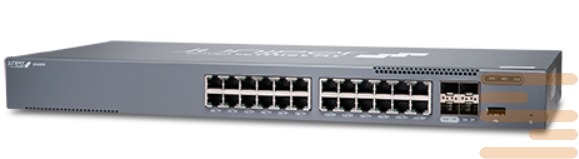

Switch juniper EX4000-24P

SKU
EX4000-24P
Call for Price
EAN: 19352
Condition: new
Stock: available on order
Lead time: 25-35 days
GPL price:

3418 $

EX4000 24-Port 10/100/1000BaseT PoE+, 4x 1G/10G SFP/SFP+ (optics sold separately) with Standard SW

At the present stage of corporate networks, when cloud technologies and artificial intelligence become an integral part of infrastructure, it is especially important to choose solutions that can provide a high level of productivity, scalability and convenience in management. The line of access switches Juniper EX4000 meets these requirements by offering an economic but powerful solution for implementation in branches, remote offices and on corporate platforms.

EX4000 - This is a cloud-oriented and AI-oriented solution created specifically for ecosystem work Juniper Mist Wired Assurance. These switches are designed with the sight of the future — In the IOT era, mobile solutions and high-speed wireless standards such as Wi-Fi 6E and Wi-Fi 7. They support both standard 1 GBPS connection and more productive 2.5 Gbps interfaces that makes them ideal for connecting modern interfaces.

Switches EX4000 allow you to automate many routine processes - from initial setup to current monitoring and troubleshooting. This is achieved through integration with Mist AI and a virtual assistant Marvis, which analyzes the behavior of connected devices and provides real-time recommendations, improving stability and rel >Authorization of the network.

The main advantages and features of the line EX4000:

  • Cloud Management and Analytics on Base Mist AI, which ensure network transparency and rapid detection of potential problems.

  • Variety of form factors: There are many models with 12, 24 and 48 ports, both with and without POE support.

  • 8 and 12 ports that are perfect for small limited spaces are available for compact solutions for compact solutions.

  • Support for the standard IEEE 802.3bz, which allows achieving multigigabit data transfer speeds, especially relevant for modern applications.

  • IEEE 802.3bt (PoE++) – to 60 W> to a port that is enough to power resource -intensive devices including CCTV cameras, terminals and access points Wi-Fi 7.

  • Fast and uninterrupted PoE power supply: The devices do not lose power even when the switch is rebooted.

  • Ability to combine up to 6 devices in one virtual chassis that simplifies scaling and centralized control without the need to add expensive controllers.

EX4000 fully supports layer 2 and layer 3 functions OSI-models by giving flexibility in building network architects of different complexity. Regardless of whether you work in a small company or control a distributed network from dozens of offices, these switches provide high stability, controllability and ease of operation.

In addition, thanks to the concept of "growth", you can start with a small number of devices and then scale the network as needed without breaking its architecture. This makes the ruler Juniper EX4000 Particularly attractive to companies planning a dynamic development of IT infrastructure.

So, EX4000 – It is not just a switch, but an intellectual access platform that combines hardware reliability and advanced cloud technologies, creating conditions for efficient and transitioning >Corporate Networking in the digitalization era.

Specifications of the switch juniper EX4000-24P:

Parameter Specification
Model Juniper EX4000-24P
Access Ports 24 x 10/100/1000BASE-T RJ-45 (1GbE PoE+)
PoE Standards Supported IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Maximum PoE Power per Port Up to 30W (PoE+)
Total PoE Power Budget 370 W (default internal PSU)
Uplink Ports 4 x 10GbE SFP+ uplink ports
Switching Capacity 128 Gbps
Forwarding Rate 95 Mpps
MAC Address Table Size 32,000 entries
VLANs Supported 1,018 concurrently active VLANs
IPv4 Routes 1,000 unicast, 1,024 multicast
IPv6 Routes 1,000 unicast, 1,024 multicast
ARP Table 4,096 entries
Multicast Groups 1,024
Jumbo Frames Up to 9216 bytes
QoS Queues per Port 12 total (8 unicast + 4 multicast)
sFlow Monitoring Supported
Management Interfaces 1 x RJ-45 console, 1 x USB Type-A, 1 x out-of-band management port
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity 5% to 90% non-condensing
Cooling Internal fans (front-to-back airflow)
Noise Level < 45 dBA (typical)
Virtual Chassis Support Yes, up to 6 members
Cloud Management via Mist Supported
Wired Assurance Support Yes
System Memory 4 GB ECC DDR4
Storage (Flash) 8 GB eMMC
Power Supply Internal fixed AC (370W), optional external redundant PSU
Max Power Consumption ~420 W (under full PoE+ load)
Dimensions (W x H x D) 17.4 x 1.72 x 10.1 in (44.2 x 4.4 x 25.6 cm)
Weight ~4.8 kg
Mounting Options 1U rack mount (mounting ears included)
Certifications FCC, UL, CE, RoHS, VCCI, BSMI, etc.
Warranty Limited Lifetime Warranty
