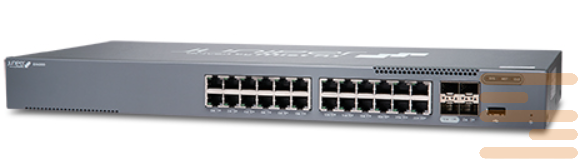

Switch juniper EX4000-24T
2163 $
EX4000 24-Port 10/100/1000BaseT, 4x 1G/10G SFP/SFP+ (optics sold separately) with Standard SW
At the present stage of corporate networks, when cloud technologies and artificial intelligence become an integral part of infrastructure, it is especially important to choose solutions that can provide a high level of productivity, scalability and convenience in management. The line of access switches Juniper EX4000 meets these requirements by offering an economic but powerful solution for implementation in branches, remote offices and on corporate platforms.
EX4000 - This is a cloud-oriented and AI-oriented solution created specifically for ecosystem work Juniper Mist Wired Assurance. These switches are designed with the sight of the future — In the IOT era, mobile solutions and high-speed wireless standards such as Wi-Fi 6E and Wi-Fi 7. They support both standard 1 GBPS connection and more productive 2.5 Gbps interfaces that makes them ideal for connecting modern interfaces.
Switches EX4000 allow you to automate many routine processes - from initial setup to current monitoring and troubleshooting. This is achieved through integration with Mist AI and a virtual assistant Marvis, which analyzes the behavior of connected devices and provides real-time recommendations, improving stability and rel >Authorization of the network.
The main advantages and features of the line EX4000:
-
Cloud Management and Analytics on Base Mist AI, which ensure network transparency and rapid detection of potential problems.
-
Variety of form factors: There are many models with 12, 24 and 48 ports, both with and without POE support.
-
8 and 12 ports that are perfect for small limited spaces are available for compact solutions for compact solutions.
-
Support for the standard IEEE 802.3bz, which allows achieving multigigabit data transfer speeds, especially relevant for modern applications.
-
IEEE 802.3bt (PoE++) – to 60 W> to a port that is enough to power resource -intensive devices including CCTV cameras, terminals and access points Wi-Fi 7.
-
Fast and uninterrupted PoE power supply: The devices do not lose power even when the switch is rebooted.
-
Ability to combine up to 6 devices in one virtual chassis that simplifies scaling and centralized control without the need to add expensive controllers.
EX4000 fully supports layer 2 and layer 3 functions OSI-models by giving flexibility in building network architects of different complexity. Regardless of whether you work in a small company or control a distributed network from dozens of offices, these switches provide high stability, controllability and ease of operation.
In addition, thanks to the concept of "growth", you can start with a small number of devices and then scale the network as needed without breaking its architecture. This makes the ruler Juniper EX4000 Particularly attractive to companies planning a dynamic development of IT infrastructure.
So, EX4000 – It is not just a switch, but an intellectual access platform that combines hardware reliability and advanced cloud technologies, creating conditions for efficient and transitioning >Corporate Networking in the digitalization era.
Specifications of the switch juniper EX4000-24T:
| Parameter | Specification |
|---|---|
| Model | Juniper EX4000-24T |
| Access Ports | 24 x 1GbE RJ-45 (10/100/1000BASE-T) |
| PoE Support | No (non-PoE model) |
| Uplink Ports | 4 x 10GbE SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95 Mpps (Million packets per second) |
| CPU | Quad-core ARM 64-bit processor |
| System Memory (RAM) | 4 GB ECC DDR4 |
| Storage | 8 GB eMMC (internal flash) |
| MAC Address Table Size | 32,000 entries |
| VLANs Supported | 1018 concurrently active VLANs |
| Jumbo Frame Support | Up to 9216 bytes |
| IPv4 Routing Table Size | 1,000 unicast / 1,024 multicast |
| IPv6 Routing Table Size | 1,000 unicast / 1,024 multicast |
| ARP Entries | 4,096 |
| Multicast Groups | 1,024 |
| QoS Queues per Port | 12 (8 unicast, 4 multicast) |
| Traffic Monitoring | sFlow supported |
| Switching Mode | Store-and-forward |
| Stacking / Virtual Chassis | Up to 6 members |
| Wired Assurance (AI-driven Monitoring) | Supported via Juniper Mist Cloud |
| Management Interfaces | 1 x RJ-45 console port, 1 x USB Type-A, 1 x out-of-band Ethernet |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity (Operating) | 5% to 90% non-condensing |
| Altitude (Operating) | Up to 5,000 ft (1,524 m) |
| Cooling | Internal fans, front-to-back airflow |
| Power Supply | Internal fixed AC power supply |
| AC Input Voltage | 100–240 VAC, 50–60 Hz |
| Maximum Power Consumption | ~55 W (typical without PoE) |
| Dimensions (W x H x D) | Approx. 17.4 x 1.72 x 10.1 in (44.2 x 4.4 x 25.6 cm) |
| Weight | Approx. 4.5 kg (9.9 lbs) |
| Mounting Options | Rack-mountable (1U), mounting ears included |
| Certifications | FCC, CE, UL, RoHS compliant |
| Noise Level | < 40 dBA (typical) |
| Warranty | Limited lifetime warranty with Juniper Support |
| condition | new |
|---|
