Internet Switch Series EX4100 provides the most secure access, completely ready for use in a virtual "cloud", access to private, individual corporate networks, branches and data centers in the era of scientific and technological progress, globalization and artificial intelligence.
The switches are optimized for efficient operation in the virtual cloud, they increase the performance and visibility of networks. At the same time, the devices fully comply with modern safety requirements.. The switches are an innovative and revolutionary development, they are decades ahead of their closest competitors in the field of uninterrupted data transmission, storage and security..
Internet switches are part of the basic infrastructure Juniper Mist Wired Assurance, ruler EX 4100 purpose-built for and managed by the cloud. Switch Series EX 4100 absorbed the simplicity of the cloud, the power Mist AI™ and a robust hardware base with best-in-class security, efficiency and performance. This provides a differentiated approach to access switching in the era of cloud storage, mobile devices and global Internet products..
Switches from this line can be easily installed and configured from the cloud. This modern approach greatly simplifies various operations, improves visibility and improves the quality of interaction with other hardware devices..
Devices are completely ready for the cloud and cloud management, managed Mist AI With Juniper Mist Wired Assurance And Marvis Virtual Network Assistant. Ethernet VPN – virtual extensible and scalable local area network (EVPN-VXLAN) is at the maximum access level.
Microsegmentation in devices is carried out on the basis of standards using group policies (GBP). Encryption between switching devices occurs using Media Access Control Security (MACsec) AES256
IEEE 802.3bt Power over Ethernet Plus (PoE++).
Telemetry based on monitoring traffic flows allows you to detect anomalies in the operation of switches in time, it also allows packet delays and create reports on the causes of certain resets.
As requirements for expanding business capabilities grow, virtual chassis technology Juniper allows you to seamlessly connect up to 10 switches EX4100 and manage them as a single, indivisible and monolithic device.

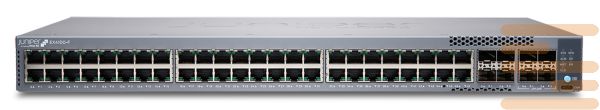

Switch Specifications Juniper EX4100-F-48P:
|
Form factor
|
Fixed 1 U access
|
|
Port density
|
EX4100-F-12P/T: 12 x 1GbE PoE/Non-PoE, 2 x 100M/1/2.5/5/10 GbE uplinks, and 4 x 10GbE stacking/uplinks
EX4100-F-24P/T: 24 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10GbE stacking/uplinks
EX4100-F-48P/T: 48 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10GbE stacking/uplinks
|
|
Wired Assurance
|
Yes
|
|
Campus Fabrics
|
10-member Virtual Chassis, EVPN-VXLAN
|
|
Cloud Managed
|
Yes
|
|
Dimensions (W x H x D)
|
EX4100-F-48P/T: 1.72” (H) x 17.4” (W) x 12.2” (D), EX4100-F-24P/T: 1.72” (H) x 17.4” (W) x 10.1” (D), EX4100-F-12P/T: 1.75” (H) x 10.6” (W) x 9.4” (D)
|
|
Backplane speed
|
80 Gbps
|
|
Data rate
|
EX4100-F-12P/T : 72/144 Gbps, EX4100-F-24P/T: 104/208 Gbps, EX4100-F-48P/T: 128/256 Gbps
|
|
Throughput
|
EX4100-F-12P/T : 107 Mpps, EX4100-F-24P/T: 154 Mpps, EX4100-F-48P/T: 190 Mpps
|
|
Resiliency
|
Integrated Power supply and fans
|
|
Traffic monitoring
|
sFlow, IPFIX, flow based telemetry
|
|
Quality-of-service (QoS) queues/port
|
12 (8 unicast, 4 multicast)
|
|
MAC addresses
|
64000
|
|
Jumbo frames
|
9216 bytes
|
|
IPv4 unicast/multicast routes
|
16000
|
|
IPv6 unicast/multicast routes
|
8000
|
|
Number of VLANs
|
N/A
|
|
ARP entries
|
32000
|
