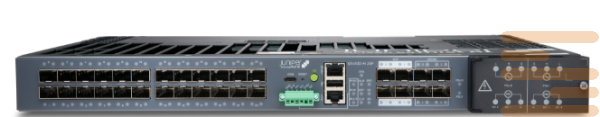

Switch juniper EX4100-H-24F-T

Series Juniper EX4100-H — It is a line of industrialized ethernet-commutators specially designed for stable work in harsh and unstable conditions. These devices are designed to build a modern and reliable network infrastructure on objects that contain vibrations, extreme temperatures, dust, moisture and other external influences.

EX4100-H Ideal for installing on:

• electric charging stations (EV),

• gas stations and oil depots,

• production and industrial enterprises,

• transport nodes and infrastructure,

• Objects with remote video surveillance and automation.

Reliability and protection — In priority

Switches of this series are designed to work at temperatures from -40°C to +75°C, have no fans (fanless-Design), which makes them particularly resistant to dust and vibration. The body corresponds to the class IP30, And the permissible humidity ranges from 5% to 95% without condensate formation. This performance allows you to use EX4100-H both indoors and outdoors — With minimal protection against direct weathering.

Additional devices support dual redundant power system (AC, DC or koMbINTERAT), which ensures continuous operation in case one power source fails.

Intellectual capabilities and control through a cloud

Series switches EX4100-H fully integrated with the cloud platform Juniper Mist and are guided by means of Mist AI™, which greatly simplifies setup, monitoring, and technical support. Service Wired Assurance provides centralized control and virtual network assistant Marvis Helps to quickly identify and eliminate problems in the network.

Key functions and technology:

• support PoE++ (802.3bt) — Power of devices (cameras, terminals and more) to 90 W> via Ethernet cable.

• Encryption MACsec (AES256) — Data Protection at a duct level.

• Technology EVPN-VXLAN — Modern virtualization of networks for distributed objects.

• Microsegmentation — Safe Network Separation by Devices Groups.

• Streaming telemetry — tracking traffic, analysis of delays and causes of package loss.

• support Precision Time Protocol (PTP) with a function Transparent Clock — for accurate synchronization.

• The possibility of merging up to 10 Devices in Virtual Chassis — For a scaled and fault -resistant architecture.

Universality of application

Thanks to the robust chassis, wide operating temperature range and powerful management features, EX4100-H handles tasks perfectly in mission-critical systems where no compromise in stability and security is acceptable:

• Industrial automation and equipment management,

• Intellectual transport systems,

• video surveillance and access control,

• distributed networks in the open air or in modular solutions.
