Switch series Juniper EX4650 Provides an increased level of access to the Internet when deployed in a separate territory. Switches also provide data point scalability.
Switch line offers fixed Ports 10 Gbit/with and modular ports 10 Gbit/with and 40 Gbit/with. Switches have up to 72 ports 10GbE, small wires and plus transceivers can be connected to them (SFP / SFP +)В and before 12 wired ports 40GbE Quad SFP + transceiver (QSFP +) in a compact platform with one column (1 U) Ethernet-switch EX4650-48Y-AFI provides 1,44 Tbit / with layer 2 and layer 3 connections to network devices such as secure routers, servers, and other switches.В
The entire range of switches Juniper EX4650 has two expansion slots that can accommodate additional expansion modules, providing greater configuration flexibility and deployment for enterprise networks.
Peculiarities:
- switching capacity: 1,44 Tbit / with / 1,07 Bpps
- The weight: 21,7 pounds (9,84 kg) with installed power supplies and fans.
- Dimensions (H x W x D): 1,72 x 17,36 x 20,48 inches (4,37 x 44,09 x 52,02 cm)
- Switch mode: through and cumulative
- Airflow from front to back or front to back (for hot and cold aisle deployment)
- Management and connection of rear console ports
- Predicted mean time between failures (MTBF): 150000 hours.
- Projected Rate FIT: 4,987

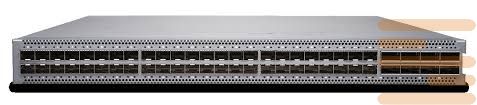

Specifications of switch Juniper EX4650-48Y-AFI:
|
Product Name
|
EX4650 48X25G+8X100G 1u AC PSU Side Intake & Port Side Exhaust
|
|
Manufacturer Part Number
|
EX4650-48Y-AFI
|
|
Product Series
|
EX4650
|
|
Product Model
|
EX4650-48Y
|
|
Product Type
|
Layer 3 Switch
|
|
Interfaces/Ports
|
|
Uplink Port
|
Yes
|
|
Modular
|
Yes
|
|
Port / Expansion Slot Details
|
48 x 25 Gigabit Ethernet Expansion Slot
8 x 100 Gigabit Ethernet Expansion Slot
|
|
I/O Expansions
|
|
Number of Total Expansion Slots
|
56
|
|
Expansion Slot Type
|
SFP28
QSFP28
|
|
Shared SFP Slot
|
No
|
|
Media & Performance
|
|
Media Type Supported
|
Optical Fiber
|
|
Ethernet Technology
|
25 Gigabit Ethernet
100 Gigabit Ethernet
|
|
Network Technology
|
25GBase-X
100GBase-X
|
|
Network & Communication
|
|
Layer Supported
|
3
|
|
Power Description
|
|
Power Source
|
Power Supply
|
|
Redundant Power Supply Supported
|
Yes
|
|
Management & Protocols
|
|
Manageable
|
Yes
|
|
Physical Characteristics
|
|
Compatible Rack Unit
|
1U
|
|
Form Factor
|
Rack-mountable
|
|
Height
|
1.7"
|
|
Width
|
17.4"
|
|
Depth
|
20.5"
|
|
Miscellaneous
|
|
Environmentally Friendly
|
Yes
|
|
Other Information
|
|
Product Family
|
EX4650
|
|
Stock Details
|
|
Manufacturer
|
Juniper Networks
|
|
Manuf Part#
|
EX4650-48Y-AFI
|
