Switch Series QFX5130 – provide a controlled, fixed configuration in a convenient, compact form factor 1U. Characterized by modern, innovative devices of increased density and perfect optimization.
The switches of this line are suitable for ensuring high-quality, well-coordinated uninterrupted operation of data processing centers, with the participation of cloud infrastructure. Units have perfect throughput and flexibility.
Switch SeriesВ QFX5130В equipped with optimal interface optionsВ 10/25/40/100 / 400GbE, which are ideal for connecting to large, private corporate networks. В
This switch modelВ QFX5130В suitable for creating corporate networks, monitoring and data centers. The devices are also suitable for enterprises that provide information services and cloud storage cells..
Compact switches will be a cost-effective solution for organizations that need scale-out networks to operate effectively, which directly depends on the complexity of traffic with in-band telemetry.
Devices work with the support of modern overlay technology (The general case of a logical network created over another network), which lays a reliable, sustainable infrastructure base for developing projects with increased network demand.
A feature of this series can be considered the fact that the switches allow you to simultaneously deploy several complex component applications, from the provision of specialized individual services to innovative applications based on artificial intelligence..
Version SwitchesВ QFX5130В comes in one version:
- QFX5130-32CD: the end or back of the data center withВ 32В portsВ 400GbEВ andВ 2 ports 10GbE.
Models are equipped with an extended range, a range of transceiversВ QSFP56-DD. Distributors provide increased performance fromВ 2,3 before 12,8 Tbit/with.
Function switches based on unique ultra-modern softwareВ Junos. This platform provides support for advanced networking features such as the Edge Gateway ProtocolВ BGP, multiprotocol label switching (MPLS), as well asВ Fibre Channel over EthernetВ (FCoE). В
Programmability is another distinguishing feature that makes this switch model unrivaled among currently existing units.. The power of the devices is fully programmable using a chipsetВ 400GbE.
Tools are equipped with double dual and alternating current ducts with the ability to quickly, emergency replacement. They provide class reservation 1 + 1. A unique cooling system that is based on cassette fans is ensured by a high degree of protection of devices from overheating risks..
Switches Juniper QFX5130 support such technologies and programming languages ​​as Python, Puppet and Zero Touch Provisioning (ZTP). Thanks to this, the devices of this series can easily cope with the growing technical complexity of the Internet network..
Specifications of switch Juniper QFX5130-32CD-D-AFI:
|
Product
|

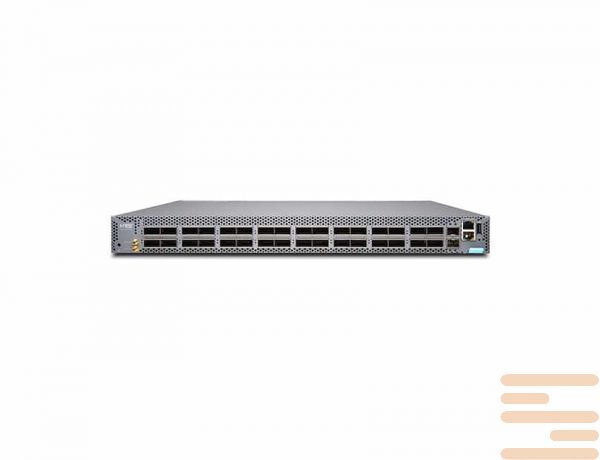

Juniper QFX5130-32CD
|
|
Specification
|
Controle du flux, Prise en charge VPN, prise en charge de BOOTP, prise en charge de RARP, prise en charge d’ARP, liaisons, prise en charge du reseau local (LAN) virtuel, IGMP snooping, protection contre les attaques de Deni de Service, stockage et retransmission, filtrage par adresse MAC, prise en charge d’IPv6, haute disponibilite, prise en charge du protocole SNTP, Low-latency queuing (LLQ), Weighted Random Early Detection (WRED), sFlow, prise en charge du protocole STP (Spanning Tree Protocol), prise en charge du protocole RSTP (Rapid Spanning Tree Protocol), prise en charge du protocole Multiple Spanning Tree Protocol (MSTP), tunnellisation, Prise en charge DCBX (Data Center Bridging Exchange), DHCP snooping, assistance Trivial File Transfer Protocol (TFTP), assistance Access Control List (ACL), qualite de service (QDS), serveur DHCP, Dynamic ARP Inspection (DAI), Redundant trunk group (RTG), Non-Stop Bridging (NSB), routage continu, Graceful Route Engine Switchover (GRES), prise en charge IPv4, relais DHCP, Data Center Bridging (DCB), base d’information de gestion (MIB), Strict Priority Queuing (SPQ), VLAN Spanning Tree Protocol (VSTP), prevention des boucles, ventilateurs redondants remplacables a chaud, transfert FCoE, Class of Service (CoS)
|
|
Performance
|
– Capacite de commutation: 12.8Tbps
– Capacite de transfert : 5,68 milliards de paquets par seconde
|
|
Ability
|
– Capacite tampon : 132 Mo
– Adresses MAC: 160000
– Routes unicast / multicast IPv4 1,24 M *
– Routes monodiffusion / multidiffusion IPv6: 610 000
– Nombre de VLAN :4091
– Entrees ARP: 32000
– Latence : 630ns
|
|
Routing protocol
|
OSPF, RIP-2, BGP, EIGRP, MSDP, MPLS, RSVP,VXLAN
|
|
CPU:
|
Intel Xeon D-1500
|
|
Ports
|
– 128 x 10/25GbE ou 32 x 40/100/400GbE
|
|
Compliance with standards
|
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, Shaped Deficit Weighted Round-Robin (SDWRR)
|
|
Software included
|
Junos OS
|
|
Type of Chassis
|
Montable sur rack – 1U
|
