Switch line Juniper QFXВ Provides high-performance fixed-configuration or modular chassis platforms for deployment at the access layer or network core in campus networks or data centers. Like other linesВ switches Juniper, PlatformВ Juniper QFXВ runs under the operating systemВ Junos, and supports technologies such asВ Junos Fusion,В QFabric SystemВ (Decision Juniper, reducing maintenance costs while increasing productivity),В Virtual ChassisВ andВ Virtual Chassis FabricВ (allows you to combine up to 32 devices into one logical switch). Thanks to the possibility of installing backup power and cooling,В Switches Juniper QFXВ series provide fault tolerance and availability of the system as a whole.
Switches JuniperВ fixed configuration such as seriesВ QFX3500В andВ QFX3600,В QFX5100,В QFX5200В andВ QFX10002В represented by high performanceВ L2В switches with extendedВ L3В functional, small form factor and high densityВ SFP/SFP+В andВ QSFP+В ports, and are optimized for deployment in data centers or campus networks.
Modular Chassis Juniper QFXВ (QFX10008В andВ QFX10016) represented by high-performance devices operating on a chipВ JuniperВ Q5, with high port densityВ 10GbE/40GbE/100GbEВ in one chassis, designed for today's data centers.

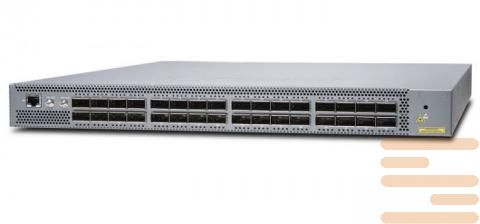

Specifications of switch Juniper QFX5200-32C-SAFI:
|
Dimensions (W x H x D)
|
QFX5200-32C: 17.36 x 1.72 x 20.48 in (44.09 x 4.37 x 52.02 cm); 1 U
QFX5200-64Q: 17.36 x 3.46 x 21.47 in (44.09 x 8.8 x 54.54 cm); 2 U
|
|
Power Options
|
100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC
|
|
System Throughput
|
Up to 3.2 Tbps
|
|
Form Factor
|
Fixed-configuration platform
|
|
Data Rate (switching capacity)
|
Up to 2.44 Bpps
|
|
Port Densities
|
QFX5200-32C: 32 QSFP+ or QSFP28; 128 10GbE SFP+ through QSFP+ to SFP+ breakout cable; 128 25GbE SFP28 through QSFP28 to SFP28 breakout cable
QFX5200-64Q: 64 QSFP+ or 32 QSFP28; 128 10GbE SFP+ through QSFP+ to SFP+ breakout cable; 128 25GbE SFP28 through QSFP28 to SFP28 breakout cable
|
|
Maximum 10GbE Density
|
128
|
|
Maximum 25GbE/50GbE Densities
|
128 / 64
|
|
Maximum 40GbE Density
|
QFX5200-32C: 32
QFX5200-64Q: 64
|
|
Maximum 100GbE Density
|
32
|
|
Resiliency
|
Dual, hot-swappable AC or DC power supplies for 1+1 redundancy
Redundant fans
|
|
Power Consumption
|
QFX5200-32C: 380 W (AC, DC), 1296 BTU per hr typical power draw; 480 W (AC, DC), 1638 BTU/hr max
QFX5200-64Q: 600 W (AC, DC), 2047 BTU/hr typical power draw; 675 W (AC, DC), 2303 BTU/hr max
|
|
Overlay Services
|
OVSDB-VXLAN, EVPN-VXLAN, MPLS, GRE
|
|
Traffic Monitoring
|
Port-based, LAG port, VLAN-based, ACL-based, Mirror to local and remote destinations (Layer 2 over VLAN)
|
|
QoS Queues / Port
|
10 (8 unicast; 2 multicast)
|
|
MAC Addresses
|
136,000
|
|
Jumbo Frames
|
9,216 Bytes
|
|
IPv4 Hosts
|
104,000
|
|
IPv4 Unicast Routes
|
128,000 prefixes; 64 ECMP paths
|
|
IPv4 Multicast Routes
|
52,000
|
|
IPv6 Hosts
|
52,000
|
|
IPv6 Unicast Routes
|
98,000
|
|
IPv6 Multicast Routes
|
28,000
|
|
Number of VLANs
|
4,096
|
|
ARP Entries
|
32,000
