Switch line Juniper QFX Provides high-performance fixed-configuration or modular chassis platforms for deployment at the access layer or network core in campus networks or data centers. Like other lines switches Juniper, platform Juniper QFX runs under the operating system Junos, and supports technologies such as Junos Fusion, QFabric System (solution Juniper, reducing maintenance costs while increasing productivity), Virtual Chassis And Virtual Chassis Fabric (allows you to combine up to 32 devices into one logical switch). Thanks to the possibility of installing backup power and cooling, switches Juniper QFX series provide fault tolerance and availability of the system as a whole.
switches Juniper fixed configuration such as series QFX3500 And QFX3600, QFX5100, QFX5200 And QFX10002 represented by high performance L2 switches with extended L3 functionality, small form factor and high density SFP/SFP+ And QSFP+ ports, and are optimized for deployment in data centers or campus networks.
Modular Chassis Juniper QFX (QFX10008 And QFX10016) represented by high-performance devices operating on a chip Juniper Q5, with high port density 10GbE/40GbE/100GbE in one chassis, designed for today's data centers.

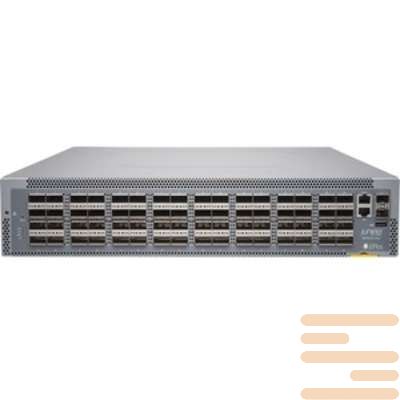

Switch Specifications Juniper QFX5210-64C-AFO2:
Product Name
|
64 QSFP28, Front to Back AC
|
Manufacturer Part Number
|
QFX5210-64C-AFO2
|
Product Type
|
Ethernet Switch
|
Manageable
|
Yes
|
Ethernet Technology
|
100 Gigabit Ethernet
|
Number of Total Expansion Slots
|
64
|
Product Family
|
QFX
|
Media Type Supported
|
Optical Fiber
|
Redundant Power Supply Supported
|
Yes
|
Expansion Slot Type
|
QSFP28
|
Form Factor
|
Rack-mountable
|
Power Consumption
|
960 W
|
Power Source
|
Power Supply
|
Layer Supported
|
3
|
Environmentally Friendly
|
Yes
|
Compatible Rack Unit
|
2U
|
Number of Power Supplies Supported
|
2
|
Modular
|
Yes
|
Port / Expansion Slot Details
|
64 x 100 Gigabit Ethernet Expansion Slot
|
Height
|
3.5"
|
Width
|
17.3"
|
Depth
|
22.8"
|
Product Series
|
QFX
|
Product Model
|
QFX5210-64C
|
Network Technology
|
100GBase-X
|
Input Voltage
|
120 V AC
230 V AC
|
Packaged Quantity
|
1
|
