Switch line Juniper QFX Provides high-performance fixed-configuration or modular chassis platforms for deployment at the access layer or network core in campus networks or data centers. Like other lines switches Juniper, platform Juniper QFX runs under the operating system Junos, and supports technologies such as Junos Fusion, QFabric System (solution Juniper, reducing maintenance costs while increasing productivity), Virtual Chassis And Virtual Chassis Fabric (allows you to combine up to 32 devices into one logical switch). Thanks to the possibility of installing backup power and cooling, switches Juniper QFX series provide fault tolerance and availability of the system as a whole.
switches Juniper fixed configuration such as series QFX3500 And QFX3600, QFX5100, QFX5200 And QFX10002 represented by high performance L2 switches with extended L3 functionality, small form factor and high density SFP/SFP+ And QSFP+ ports, and are optimized for deployment in data centers or campus networks.
Modular Chassis Juniper QFX (QFX10008 And QFX10016) represented by high-performance devices operating on a chip Juniper Q5, with high port density 10GbE/40GbE/100GbE in one chassis, designed for today's data centers.

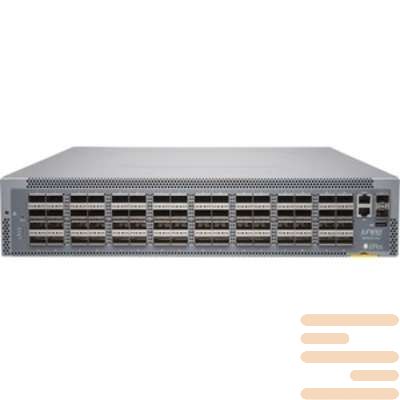

Switch Specifications Juniper QFX5210-64C-DCSAFI:
|
System throughout
|
Up to 12.8 Tbps (bidirectional)
|
|
Forwarding capacity
|
Up to 4.2 Bpps
|
|
QSFP+/QSFP28 ports
|
64 QSFP+ or QSFP28
|
|
25GbE (breakout cable, QSFP28)
|
128
|
|
10GbE (breakout cable, QSFP+)
|
128+2
|
|
Dimensions (W x H x D)
|
17.26 x 3.45 x 24.1 in. (43.84 x 8.77 x 61.2 cm) (depth including fan handle; otherwise 22.83 in. (58 cm)
|
|
Rack units
|
2 U
|
|
Weight
|
14.1 kg
|
|
Operating system
|
Junos OS
|
|
CPU
|
Intel Broadwell-DE, 4 Core, 2.2 GHz, 16 GB DDR4, 100 GB SSD
|
|
Management interfaces
|
1 RJ-45 management port provided
|
|
Power
|
Redundant (1+1) hot-pluggable 1100 W AC/DC power supplies
|
|
110-240 V single phase AC power
|
|
-36 to -72 V DC power
|
|
Cooling
|
Front-to-back and back-to-front cooling
|
|
Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw
|
|
Total packet buffer
|
42 MB
|
|
Warranty
|
Juniper standard one-year warranty
|
