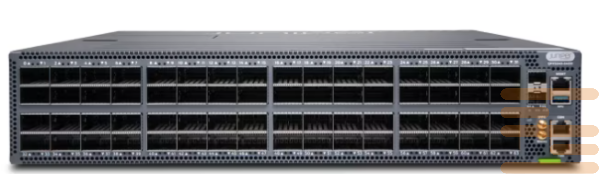

Switch Juniper QFX5240-64OD-CHAS
Switches QFX5240 created to meet the requirements of advanced network infrastructures of data centers (Data Center), artificial intelligence oriented (AI) and machine learning (ML). These devices provide efficient operation of large clusters used to teach models and process high -loaded computing processes, meet the current scalability and performance requirements.
QFX5240 equipped with high density ports 800GBE in a fixed form factor, which allows to support complex network services specially configured for tasks AI/ML. Thanks to low latency, these switches optimize GPU utilization, reducing task execution time (Job Completion Time, JCT), which helps accelerate model training and improve overall computational efficiency.
Features QFX5240:
- Effective support of work loads AI/ML using automation such as Juniper Apstra, To ensure uninterrupted work.
- Increasing the economic benefit of management AI/ML by environments due to resource optimization.
- A reliable basis for building artificial intelligence infrastructures taking into account the growing needs of organizations.
QFX5240 – This is a key component of AI-oriented networks that offers a wonderful combination of productivity, scalability and cost-effective.
Specifications of the switch Juniper QFX5240-64OD-CHAS:
QFX5240-64OD-CHAS Specifications |
|
|
Model |
QFX5240-64OD-CHAS |
|
Port Density |
48 x 25GbE SFP28 + 16 x 100GbE QSFP28 |
|
Switching Capacity |
4.8 Tbps |
|
Forwarding Rate |
3.6 Bpps |
|
CPU |
Intel Xeon Processor D-1500 |
|
Memory (RAM) |
16 GB |
|
Flash Storage |
64 GB |
|
Management Ports |
1 x RJ-45 |
|
Console Port |
1 x RS-232 serial |
|
Rack Units |
1 RU |
|
Airflow |
Front-to-back or back-to-front |
|
Cooling |
Hot-swappable fans |
|
Power Supply |
Redundant, hot-swappable |
|
Power Input |
100-240V AC |
|
Power Consumption |
650W |
|
Operating Temperature |
0°C to 40°C |
|
Storage Temperature |
-40°C to 70°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
MTBF |
800,000 hours |
|
Compliance |
RoHS, FCC, UL |
| condition | new |
|---|
