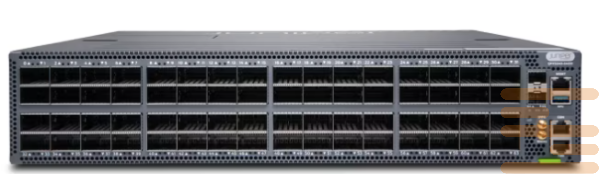

Switch Juniper QFX5240-64QD-AO
Switches QFX5240 created to meet the requirements of advanced network infrastructures of data centers (Data Center), artificial intelligence oriented (AI) and machine learning (ML). These devices provide efficient operation of large clusters used to teach models and process high -loaded computing processes, meet the current scalability and performance requirements.
QFX5240 equipped with high density ports 800GBE in a fixed form factor, which allows to support complex network services specially configured for tasks AI/ML. Thanks to low latency, these switches optimize GPU utilization, reducing task execution time (Job Completion Time, JCT), which helps accelerate model training and improve overall computational efficiency.
Features QFX5240:
- Effective support of work loads AI/ML using automation such as Juniper Apstra, To ensure uninterrupted work.
- Increasing the economic benefit of management AI/ML by environments due to resource optimization.
- A reliable basis for building artificial intelligence infrastructures taking into account the growing needs of organizations.
QFX5240 – This is a key component of AI-oriented networks that offers a wonderful combination of productivity, scalability and cost-effective.
Specifications of the switch Juniper QFX5240-64QD-AO:
QFX5240-64QD-AO Specifications |
|
|
Model Number |
QFX5240-64QD-AO |
|
Switch Model |
QFX5240 |
|
Port Density |
64 QSFP+ Ports |
|
Switching Capacity |
6.4 Tbps |
|
Forwarding Rate |
4 Bpps |
|
Management Ports |
2 x 10/100/1000Base-T Ethernet |
|
Console Ports |
1 x RJ-45 Serial Console |
|
USB Ports |
1 x USB 2.0 |
|
Power Supply |
Dual AC/DC |
|
Cooling System |
Front-to-Back Airflow |
|
Rack Units |
1 RU |
|
Jumbo Frames |
Up to 9216 Bytes |
|
VLANs |
4094 VLAN IDs |
|
MAC Address Table |
256K Entries |
|
MLAG Support |
Yes |
|
OS Support |
Junos OS |
|
MTBF |
Over 300,000 hours |
|
Operating Temperature |
0°C to 40°C |
|
Storage Temperature |
-40°C to 70°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Dimensions (WxDxH) |
17.5 x 21.8 x 1.72 in (44.5 x 55.3 x 4.37 cm) |
| condition | new |
|---|
