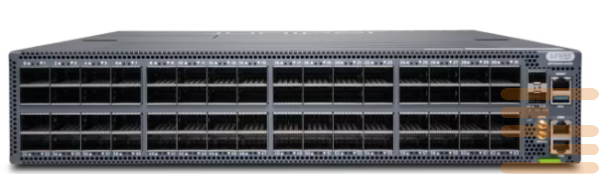

Switch Juniper QFX5240-64QD-CHAS
Switches QFX5240 created to meet the requirements of advanced network infrastructures of data centers (Data Center), artificial intelligence oriented (AI) and machine learning (ML). These devices provide efficient operation of large clusters used to teach models and process high -loaded computing processes, meet the current scalability and performance requirements.
QFX5240 equipped with high density ports 800GBE in a fixed form factor, which allows to support complex network services specially configured for tasks AI/ML. Thanks to low latency, these switches optimize GPU utilization, reducing task execution time (Job Completion Time, JCT), which helps accelerate model training and improve overall computational efficiency.
Features QFX5240:
- Effective support of work loads AI/ML using automation such as Juniper Apstra, To ensure uninterrupted work.
- Increasing the economic benefit of management AI/ML by environments due to resource optimization.
- A reliable basis for building artificial intelligence infrastructures taking into account the growing needs of organizations.
QFX5240 – This is a key component of AI-oriented networks that offers a wonderful combination of productivity, scalability and cost-effective.
Specifications of the switch Juniper QFX5240-64QD-CHAS:
QFX5240-64QD-CHAS Specifications |
|
|
Model Name |
QFX5240-64QD-CHAS |
|
Port Configuration |
64 x 100GbE QSFP28 ports |
|
Switching Capacity |
12.8 Tbps |
|
Forwarding Performance |
4.8 Bpps |
|
Management Ports |
1 x RJ-45 Ethernet and 1 x mini-USB |
|
Power Supply Options |
AC and DC |
|
Redundant Power Supplies |
Yes, hot-swappable |
|
Cooling |
Front-to-back and back-to-front airflow options |
|
Chassis Dimensions |
Height: 1.75 in. (4.4 cm), Width: 17.6 in. (44.7 cm), Depth: 21.3 in. (54.1 cm) |
|
Rack Units |
1U |
|
MAC Addresses |
Up to 288,000 |
|
VLAN IDs |
4094 |
|
Maximum Transmission Unit (MTU) |
9216 bytes |
|
Latency |
650 ns |
|
Buffer Size |
22 MB Shared Buffer |
|
Operating Temperature |
0°C to 40°C |
|
Operating Humidity |
5% to 95% (non-condensing) |
|
Compliance |
RoHS-6, CE, FCC Class A |
|
Environmental Standards |
Energy Efficient Ethernet (EEE), IEEE 802.3az |
|
Management Protocols |
SNMP v1, v2c, v3; RMON; SSH; XML; JSON-RPC; REST APIs |
| condition | new |
|---|
