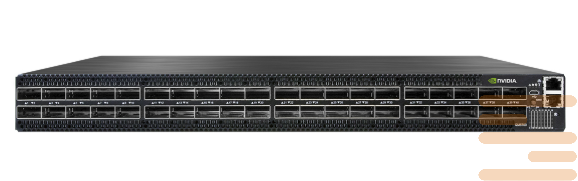

Switch NVIDIA Quantum InfiniBand MQM8700-HS2F
SKU
MQM8700-HS2F
EAN:
18940
Condition:
new
Stock:
available on order
Lead time:
25-35 days
NVIDIA Quantum 200Gb/s InfiniBand switch, 40 QSFP56 ports, two power supplies (AC), x86 dual core, standard depth, P2C airflow, rail kit
Category: Nvidia Switch
In the modern world, growing computing loads require advanced network solutions capable of cope with huge amounts of data. A series of switches NVIDIA Quantum QM8700 – These are high-speed Infinibnd-device that provide exceptional bandwidth, minimal delays and advanced data processing technologies directly on the network. These switches will be the perfect choice for data processing centers (Data Center), cloud solutions, artificial intelligence systems (AI) and highly productive calculations (HPC).
High performance and scalability
Switches NVIDIA Quantum QM8700 and QM8790 offer two configuration options: Up to 40 ports at speed 200 GbIT/with or up to 80 ports 100 GbIT/with. This allows you to reach an unsurpassed bandwidth 16 TbIT/with full-duplex data transmission. The devices provide very low latency, which makes them an ideal choice for environments with intensive computing processes.
Intellectual data processing in the network
One of the key benefits of the series QM8700 There is technology support NVIDIA SHARP™ (Scalable Hierarchical Aggregation and Reduction Protocol). This technology allows data processing at the switch level, reducing the amount of transmitted information and the load on server processors. As a result, collective operations such as data exchange HPC, deep learning and large -scale analytical calculations.
Optimization of network architecture
Switches QM8700 have a unique architecture that supports a wide range of topology: Fat Tree, DragonFly+, multidimensional Torus and others. Thanks to support for port separation 200 GbIT/s on two independent 100 GbIT/s port, users can flexibly adapt the network to their tasks. It also reduces the cost of infrastructure, providing maximum equipment efficiency.
Flexibility and compatibility
The NVIDIA QUANTUM series is fully compatible with previous generations of Infinibanda and easily integrated into the existing ecosystem of decisions NVIDIA. QM8700 supports work with network adapters NVIDIA ConnectX-6 and software solutions for high -performance computing, ensuring the stability and fault of the network.
Specifications of the switch NVIDIA Quantum InfiniBand MQM8700-HS2F:
High performance and scalability
Switches NVIDIA Quantum QM8700 and QM8790 offer two configuration options: Up to 40 ports at speed 200 GbIT/with or up to 80 ports 100 GbIT/with. This allows you to reach an unsurpassed bandwidth 16 TbIT/with full-duplex data transmission. The devices provide very low latency, which makes them an ideal choice for environments with intensive computing processes.
Intellectual data processing in the network
One of the key benefits of the series QM8700 There is technology support NVIDIA SHARP™ (Scalable Hierarchical Aggregation and Reduction Protocol). This technology allows data processing at the switch level, reducing the amount of transmitted information and the load on server processors. As a result, collective operations such as data exchange HPC, deep learning and large -scale analytical calculations.
Optimization of network architecture
Switches QM8700 have a unique architecture that supports a wide range of topology: Fat Tree, DragonFly+, multidimensional Torus and others. Thanks to support for port separation 200 GbIT/s on two independent 100 GbIT/s port, users can flexibly adapt the network to their tasks. It also reduces the cost of infrastructure, providing maximum equipment efficiency.
Flexibility and compatibility
The NVIDIA QUANTUM series is fully compatible with previous generations of Infinibanda and easily integrated into the existing ecosystem of decisions NVIDIA. QM8700 supports work with network adapters NVIDIA ConnectX-6 and software solutions for high -performance computing, ensuring the stability and fault of the network.
Specifications of the switch NVIDIA Quantum InfiniBand MQM8700-HS2F:
| Feature | Description |
|---|---|
| Product Name | NVIDIA Quantum InfiniBand Switch MQM8700-HS2F |
| Switch ASIC | NVIDIA Quantum™ |
| Switch Type | Fixed (non-modular) Managed InfiniBand Switch |
| Ports | 40 QSFP56 ports |
| Port Speed | 200 Gb/s per port (HDR InfiniBand) |
| Aggregate Throughput | 16 Tb/s |
| Max Message Rate | Up to 830 million messages per second |
| Latency | Sub-microsecond latency (typically ~130ns) |
| Management | Onboard CPU for system management, web-based GUI, CLI, SNMP |
| Airflow | Front-to-back (HS2F = Hot Swap, 2 Fans, Front airflow) |
| Cooling | Redundant hot-swappable fans |
| Power Supplies | Dual hot-swappable power supply units |
| Power Consumption | Approx. 2,500W (typical, depending on workload and configuration) |
| Dimensions (H x W x D) | 1U Rack Mount, Approx. 43.4 x 4.4 x 64.4 cm (17.1 x 1.73 x 25.35 in) |
| Weight | Approx. 15 kg (33 lbs) |
| Management Interfaces | USB, RS232 console, 1GbE out-of-band management port |
| Software Support | MLNX-OS®, NVIDIA UFM® (Unified Fabric Manager), SDK APIs |
| Protocols Supported | InfiniBand HDR, Adaptive Routing, Congestion Control, Subnet Management |
| Compliance and Standards | RoHS, CE, FCC, UL, VCCI, ICES |
| Use Case | High-performance computing (HPC), AI clusters, Data Centers, Cloud Infrastructure |
| condition | new |
|---|
